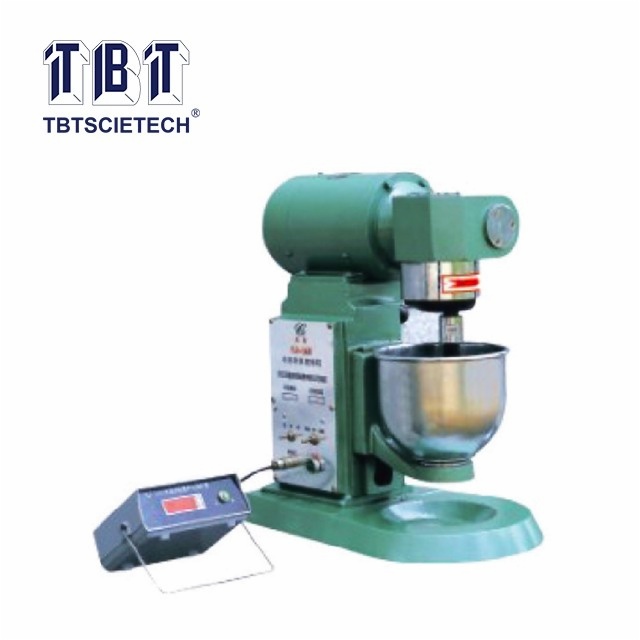

Cement Paste Mixer TBTNJ-160A

Item Code:TBTNJ-160A Features:TBTNJ-160A is used to mix cement and water to prepare homogeneous paste and specimen for the normal consistency and setting time tests.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTNJ-160A is used to mix cement and water to prepare homogeneous paste and specimen for the normal consistency and setting time tests.
It is mainly composed of a base, a column, a gearbox, a slide plate, a stirring blade, a stirring pot and a two speed motor.



Speed

Revolution(r/min)

Rotation(r/min)

Control time(s)

Low

62±5

140±5

120±3

Stop





15

High

125±10

285±10

120±3

Mixing bowl capacity

2.5L

Stirring blade width

111+0.15mm

Shaft connecting screw for mixing leaf & blade

M16 x 1

Stirring pot Max. inner diameter x depth

160± 1 x 139 ± 2 (mm)

Stirring pot wall thickness

1mm

Working gap between stirring blade & stirring pot

2 ± 1mm

Power

380V 50HZ 370W

Size

472*280*466mm

Net weight

≈55kg
