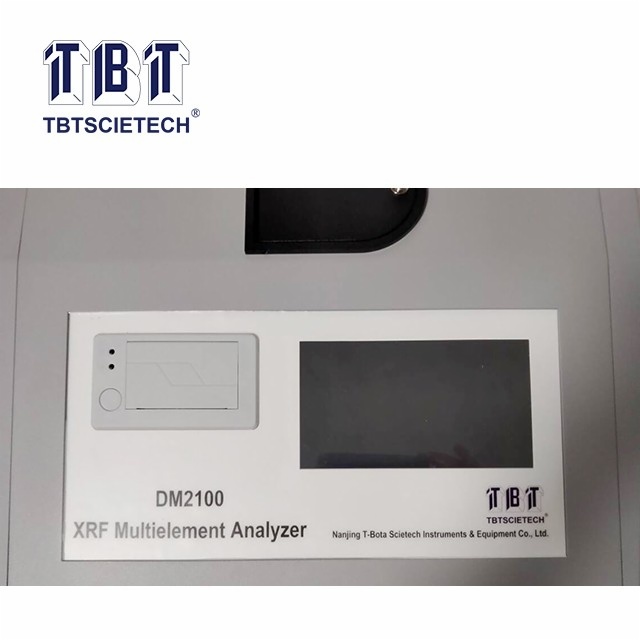

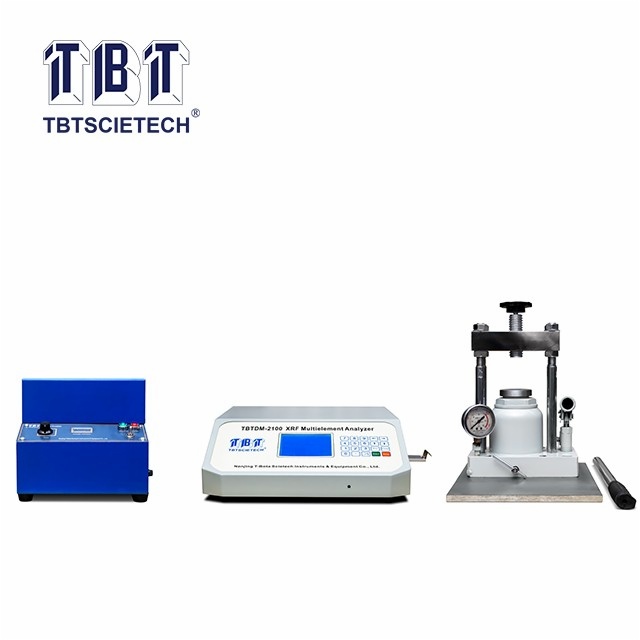

XRF Multielement Analyzer TBTDM-2100

  • XRF Multielement Analyzer
  • XRF Multielement Analyzer
  • XRF Multielement Analyzer
Item Code:TBTDM-2100 Features:TBTDM-2100 is advanced model which combines the analytical functions of X-ray fluorescence calcium & iron analyzer for 5 elements analysis, silicon & aluminum analyzer and sulfur analyzer.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTDM-2100 is advanced model which combines the analytical functions of X-ray fluorescence calcium & iron analyzer for 5 elements analysis, silicon & aluminum analyzer and sulfur analyzer.
It is used for the determination of Al2O3, SiO2 , CaO, Fe2O3, SO3 and the amount of admixture added. Its performance is beyond regular multi-element analyzers.
It also automatically calculate KH, SM and IM values. The analysis results are all within error limits.
1.It combines the X-ray fluorescence calcium & iron analyzer, silicon & aluminum analyzer and sulfur analyzer;
2.It can run without radioactive source which avoid the environmental & operator safety problem;
3.Large LCD screen for easy and quick operation;
4.Non-destructive testing allows repeated sample measurement;
5.Large capacity storage space can record over 2000pcs data.

Analysis range

CaO, Fe₂O₃, SIO2, AI2O3, SO₃: 0.01%~100%

Analysis width

The components of CaO, Fe₂O₃, SIO2, AI2O3, SO₃ are all less than 15%

(working range selected via calibration curve)

Analysis precision

Standard deviation: SCaO ≤0.10%, SFe₂O₃ ≤0.05%, SSiO2 ≤0.07%,

SAI2O3 ≤0.07%, SSO₃ ≤0.05%

Allowable error

△CaO% ≤0.25%, △Fe₂O₃% ≤0.10%, △SiO2% ≤0.20%, AI2O3 ≤0.20%,

△SO₃% ≤0.15%

Analysis time

n*90 seconds (n=1,2,3; usually n=2)

Stability

Absolute drift

|△CaO%| ≤0.15%, |△Fe₂O₃%| ≤0.10%, |△SiO2%| ≤0.10%,

|△AI2O3%| ≤0.10%, |△SO₃%| ≤0.10%

Working temperature & humidity

15~40℃, ≤85%RH

Weight

Around 13.8kg

Power supply

220V, 50Hz
