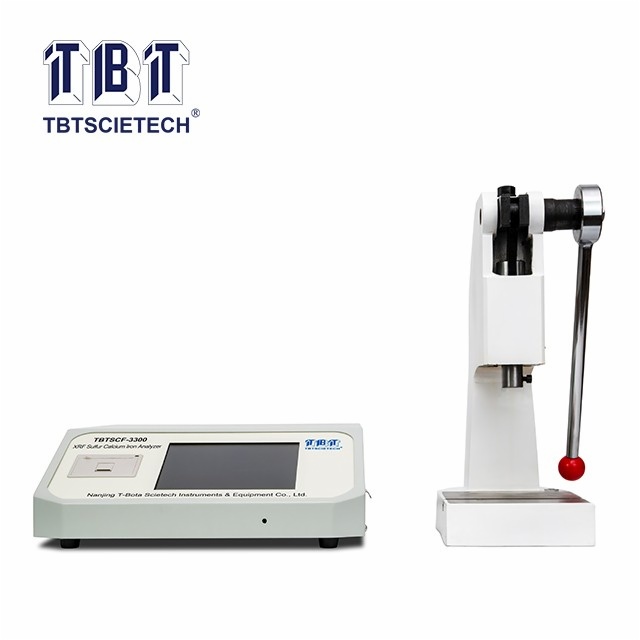

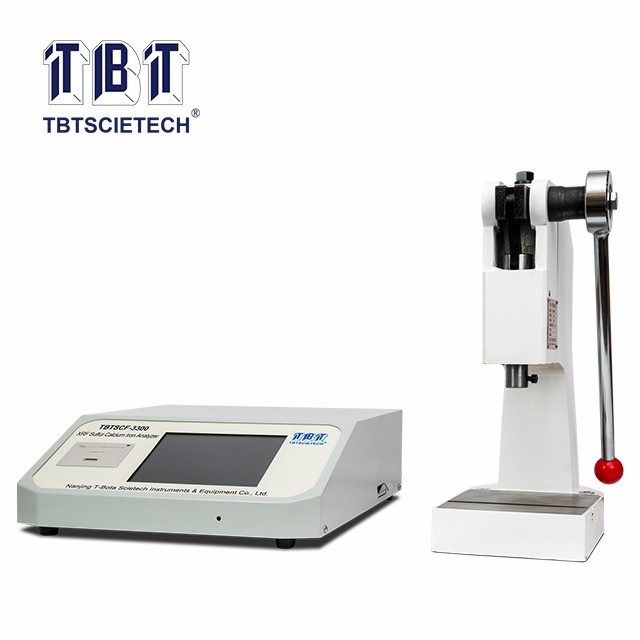

XRF Sulfur Calcium Iron Analyzer TBTSCF-3300

  • XRF Sulfur Calcium Iron Analyzer
  • XRF Sulfur Calcium Iron Analyzer
  • XRF Sulfur Calcium Iron Analyzer
  • XRF Sulfur Calcium Iron Analyzer
  • XRF Sulfur Calcium Iron Analyzer
Item Code:TBTSCF-3300 Features:TBTSCF-3300 is designed for the determination of CaO and Fe2O3 in raw meal before the kiln, and can measure SO3, CaO and the amount of mixed materials in cement after the kiln.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTSCF-3300 is designed for the determination of CaO and Fe2O3 in raw meal before the kiln, and can measure SO3, CaO and the amount of mixed materials in cement after the kiln.
It is applicable to rapid component analysis in scenarios like cement production, thermal power plants, brick factories, and iron ore plants.
1.One device can do both calcium-iron and sulfur analysis with significant efficiency;
2.It can run without radioactive source which avoid the environmental & operator safety problem;

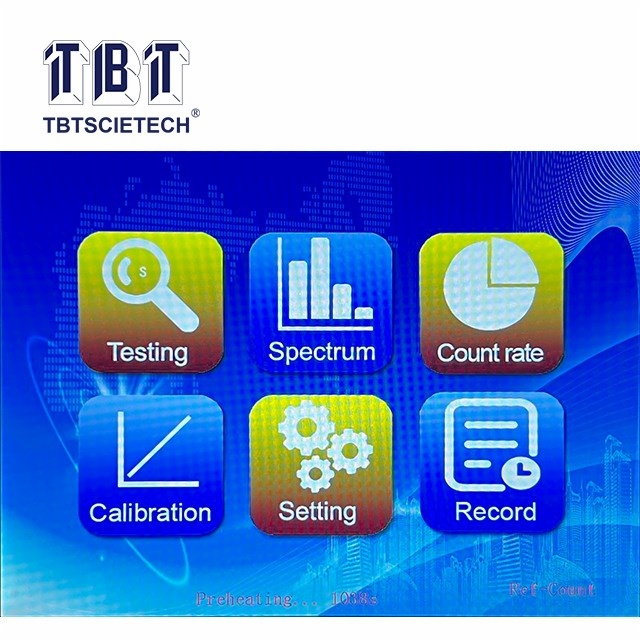

3.Large LCD screen for easy and quick operation;
4.Fast analysis speed, wide analysis range and reduce human error significantly;
5.Non-destructive testing allows repeated sample measurement;

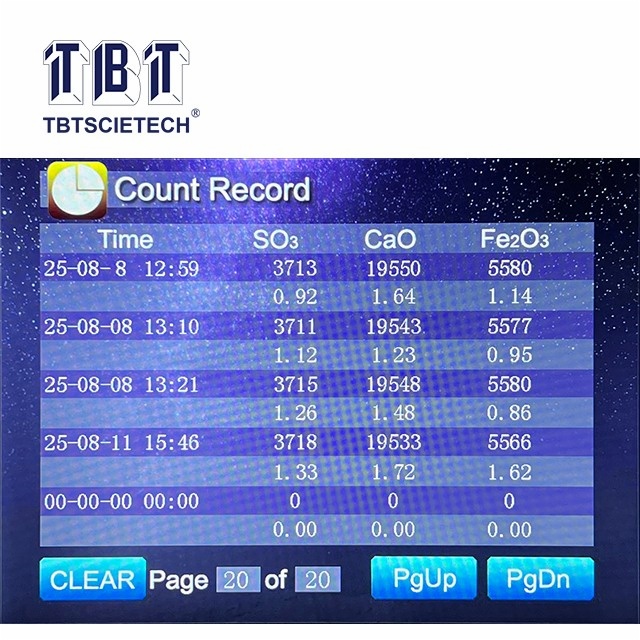

6.Large capacity storage space can record over 2000pcs data.

Analysis range

SO₃, CaO, Fe₂O₃: 0.01%~100%

Analysis width

SO₃ (CaO, Fe₂O₃)%max.~SO₃ (CaO, Fe₂O₃)%min. ≤15%

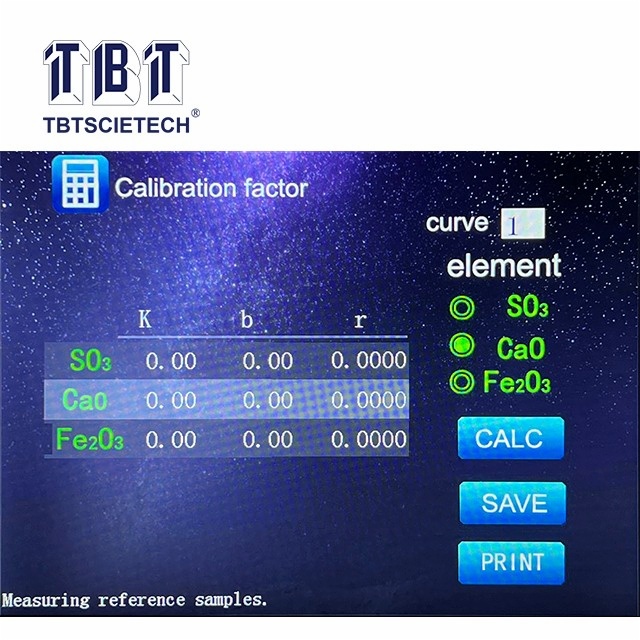

(working range selected via calibration curve)

Analysis precision

Standard deviation: SSO₃ ≤0.04%, SCaO ≤0.10%, SFe₂O₃ ≤0.05%

Allowable error

△SO₃% ≤0.15%, △CaO% ≤0.25%, △Fe₂O₃% ≤0.15%

Analysis time

n*30 seconds (n=1~5, usually n=2)

Stability

Absolute drift |△SO₃%| ≤0.10%, |△CaO%| ≤0.10%, |△Fe₂O₃%| ≤0.10%

Working temperature & humidity

15~40℃, ≤85%RH

Weight

Around 13.8kg

Power supply

220V, 50Hz
