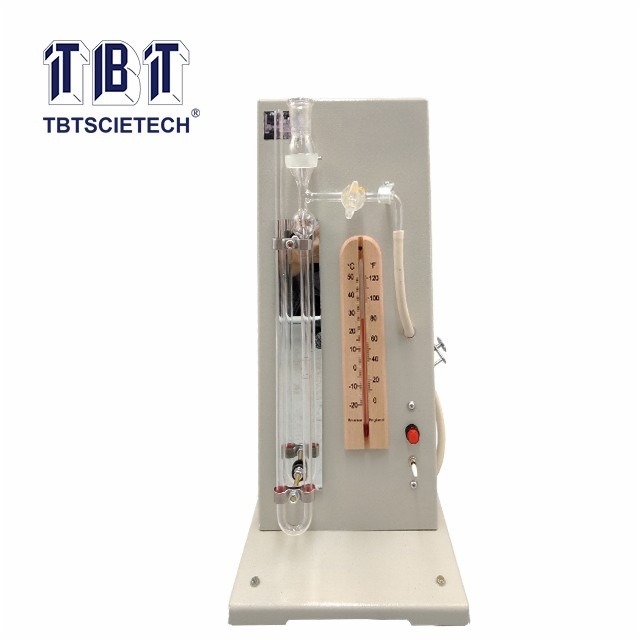

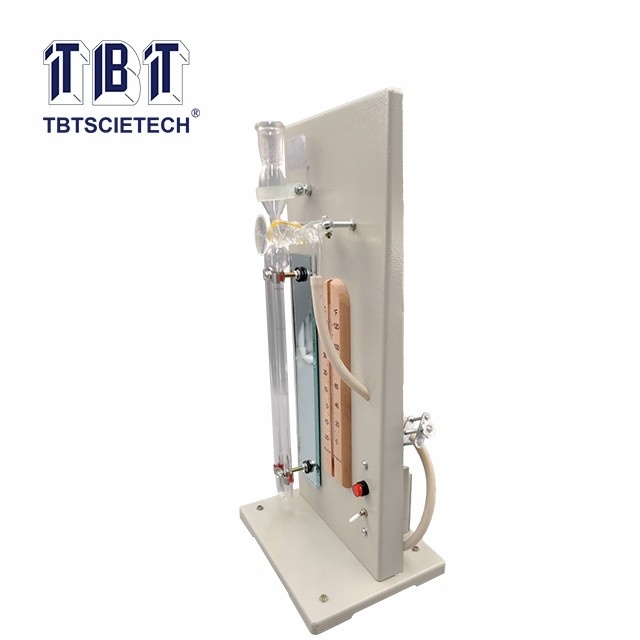

    Blaine Air Permeability Apparatus
    Blaine Air Permeability Apparatus
    Item Code:DBT-127 Features:DBT-127 is used for the air permeability measuring of cement specimen.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    DBT-127 is used for the air permeability measuring of cement specimen.



    ASTM C204

    Inside diameter of permeability cell

    φ12.7mm

    Height of sample in the cell

    15mm

    Perforated disk

    35holes

    Diameter of the hole

    φ1.0mm

    Disk thickness

    1mm

    Power

    220V, 50Hz

    Net weight

    Around 3.2kg
