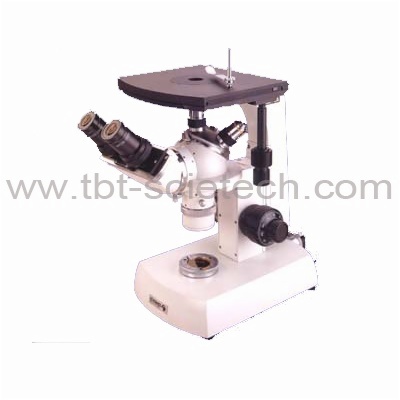

XJP-2/3 Metallurgical Microscope
Description:
|
Total magnifications......................50X-1250X
Achromatic objectives ..10/0.25 100/1.25 (Oil)
Semi-plan achromatic objective ....SP40/0.65
Eyepiece .............................................H5X
Wild-field eyepieces.......... WF10X WF12.5X
Reticule eyepiece ...WF10X (0.1mm/division)
Optional accessories
1) Micrometer (0.01mm/division)
2) Plan achromatic objectives
................................ PL2.5/0.07 PL20/0.35
3) Achromatic objective .......................4/0.1
|
Standard Outfits
Order No.
|
Item
|
Model
|
XJP-2
|
XJP-2A
|
XJP-2B
|
XJP-3
|
XJP-3A
|
4J.2
|
Main body
|
●
|
●
|
●
|
●
|
●
|
4J.6
|
Monocular head (45°)
|
●
|
●
|
●
|
|
|
12X.4
|
Binocular head (45°)
|
|
|
|
●
|
●
|
4J.5
|
Mechanical stage (with a stroke of 28 by
24 and size of 170 by 166)
|
●
|
●
|
|
|
●
|
8306
|
Mechanical stage (with a stroke of 28 by
30 and size of 180 by 165)
|
|
|
●
|
|
●
|
4J.0-1
|
Stage plate (¢10)
|
●
|
●
|
●
|
●
|
●
|
4J.0-4
|
Stage plate (¢15)
|
●
|
●
|
●
|
●
|
●
|
12X.3-5
|
Stage plate (¢20)
|
●
|
●
|
●
|
●
|
●
|
EH5
|
Huyenian ocular (5X-20)
|
●
|
●
|
●
|
●●
|
●●
|
EP10a
|
Plan eyepiece (10X-18)
|
●
|
●
|
●
|
●●
|
●●
|
EP12.5
|
Plan eyepiece (12.5X-14)
|
●
|
●
|
●
|
●●
|
●●
|
EPr10b
|
Plan reticle eyepiece (10X-14)
|
●
|
●
|
●
|
●
|
●
|
B-OPr2.5
|
Plan achromat objective (2.5/0.07)
|
○
|
○
|
○
|
○
|
○
|
B-OAr4
|
Achromat objective (4/0.10)
|
○
|
|
|
○
|
|
B-OPr4
|
Plan achromat objective (4/0.10)
|
|
○
|
○
|
|
○
|
M-OAr10
|
Achromat objective (10/0.25)
|
●
|
|
|
●
|
|
M-OSPr40a
|
S-plan achromat objective (40/0.65)
|
●
|
|
|
●
|
|
M-OAor100
|
Achromat objective (100/1.25 oil)
|
●
|
|
|
●
|
|
M-OPr10
|
Plan achromat objective (10/0.25)
|
|
●
|
●
|
|
●
|
M-OPr40
|
Plan achromat objective (40/0.65)
|
|
●
|
●
|
|
●
|
M-OSpor100
|
S-plan achromat objective (100/1.25 oil)
|
|
●
|
●
|
|
●
|
|
Colour filter ¢32(green,yellow,blue,grey)
|
|
●
|
●
|
|
●
|
4J.0-2
|
Gross glass ¢32
|
●
|
●
|
●
|
●
|
●
|
LYQ6-15D
|
HALOGEN LAMP 6V15W
|
●
|
●
|
●
|
●
|
●
|
LS09
|
Light source unit
|
●
|
●
|
●
|
●
|
●
|
3X-2
|
Transformer
|
●
|
●
|
●
|
●
|
●
|
CL02
|
Clamps
|
●
|
●
|
●
|
●
|
●
|
|
Stage micrometer (division 0.01mm)
|
○
|
○
|
○
|
○
|
○
|
SC03
|
Sample holder
|
○
|
○
|
○
|
○
|
○
|
Note:“●”in the table is standard attachment. “○”is optional accessories.
Design change:To keep pace with technological advance ,we have reserved
the right to make design modifications and changes without notice.
