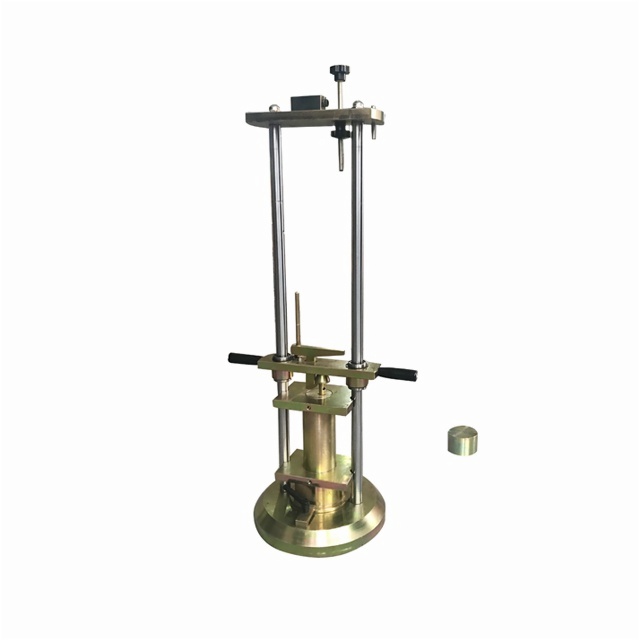

Characteristics
1. The apparatus has been designed in a particularly heavy duty form, with specially hardened steel surfaces for minimum wear.
2. The assembly is heavily plated to ensure corrosion resistance and forms a rigid frame around the quick-release trigger mechanism which ensures an effective free fall of the hammer when released.
3. A built-in counter automaically indicates the numebr of belows delivered.
Main Technical Parameters
Impact hammer weight
|
13.75kg±0.25kg
|
Height of the falling hammer
|
380±5mm
|
Impact cup
|
102×50mm
|
Test sieve
|
15.0mm 10.0mm 2.50mm
|
circular section metal straight stick
|
10×230mm, one part is semicircle
|
Gauge metal cylinder
|
75±1×50±1mm
|
Main Structure
1. Main frame supporting performing test............................................. 1 set
2. Impact hammer equipped with modified mould..................................1 set
3. Brass Sample container:................................................................... 1 pc
4. Locking jigs for fixing sample container: .............................................1 set
5. Adjustable cross beam: .......................................................................2 pcs
6. Counter:............................................................................................... 1 pc
7. English Manual: ...................................................................................1 pc
8. Certificate of product:........................................................................... 1pc
