Riffle Boxes sample dividers Manufacturer

Description
Referring Standard
Features
Technical Specification

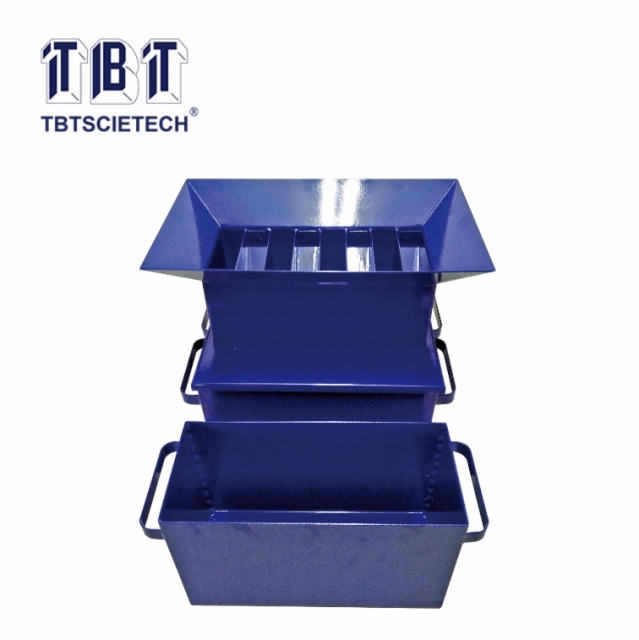

For the rapid preparation of samples, i.e. division into two representative portions. Detailed below is a range of dividers, each constructed of heavy gauge sheet metal, with particular attention given to reinforcement of the partitions to maintain the accuracy of the slot dimensions.

The units offered are supplied in a range of sizes from 7 mm to 64 mm slots.

Specification:

Model	Max. size		Slot	No. of	Approx
	sample(mm)		width(mm)	slots	Capacity
	BS	EN			(kg)
23-3000	4.5	3.5	7	12	0.3
23-3050	8.5	6.5	13	12	2
23-3070	10	7.5	15	12	2
23-3100	12.5	9.5	19	10	4
23-3150	16.5	12.5	25	10	4
23-3170	20	15	30	10	4
23-3200	25	19	38	8	11
23-3300	33	25	50	8	14
23-3350	42.5	32	64	8	18

Riffle Boxes sample dividers Riffle Box
