Asphalt Bending Beam Rheometer TBTBBR-1

  • Asphalt Bending Beam Rheometer
  • Asphalt Bending Beam Rheometer
  • Asphalt Bending Beam Rheometer
  • Asphalt Bending Beam Rheometer
  • Asphalt Bending Beam Rheometer
Item Code:TBTBBR-1 Features:TBTBBR-1 Bending Beam Rheometer is designed according to AASHTO T313, ASTM D6648 and EN 14771 to perform flexural creep stiffness of asphalt binder at the low-temperature condition.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTBBR-1 Bending Beam Rheometer is designed according to AASHTO T313, ASTM D6648 and EN 14771 to perform flexural creep stiffness of asphalt binder at the low-temperature condition.

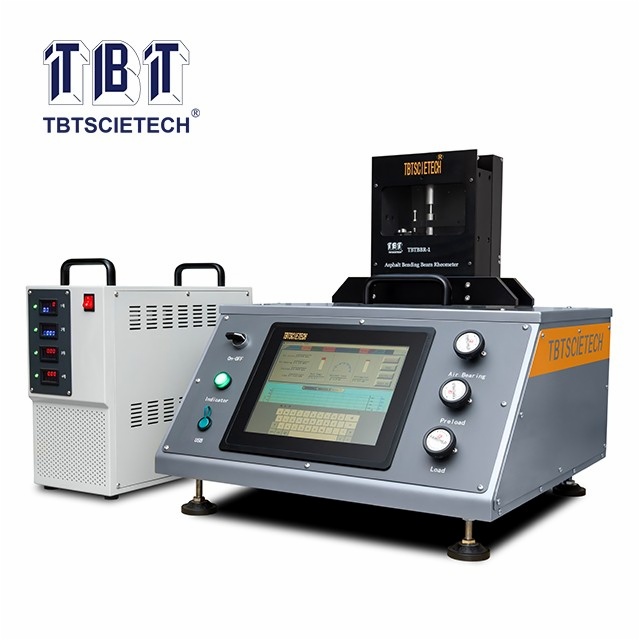

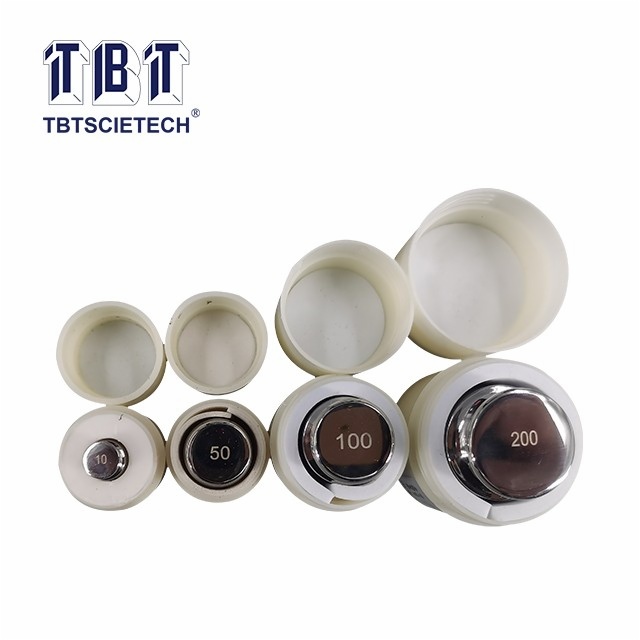

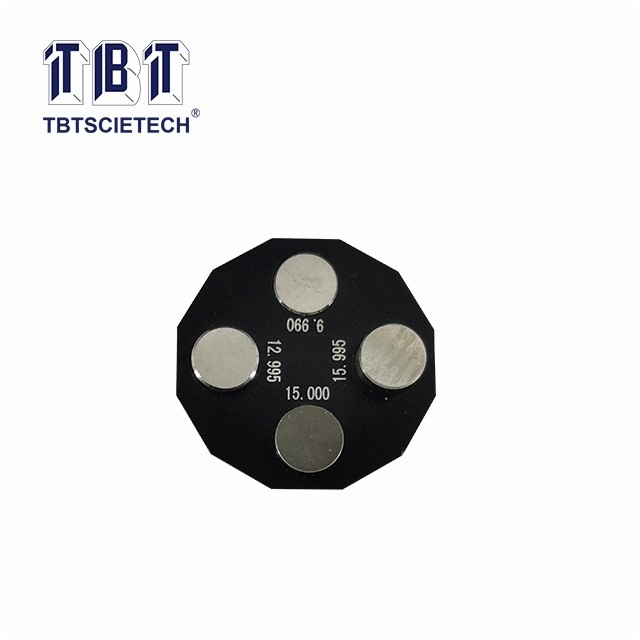

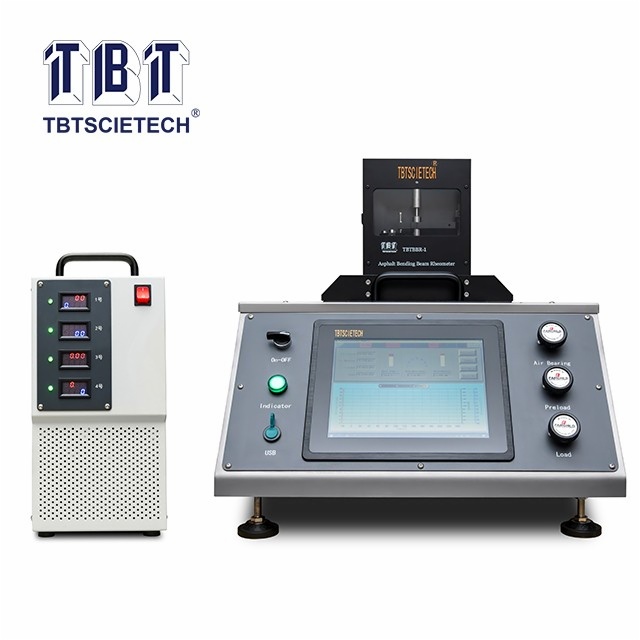

Each TBTBBR-1 consists of load frame, built-in touch screen industrial computer, fluid bath, chiller, calibration kit, air compressor and power box.

AASHTO T313, ASTM D6648, EN14771, AASHTO TP112

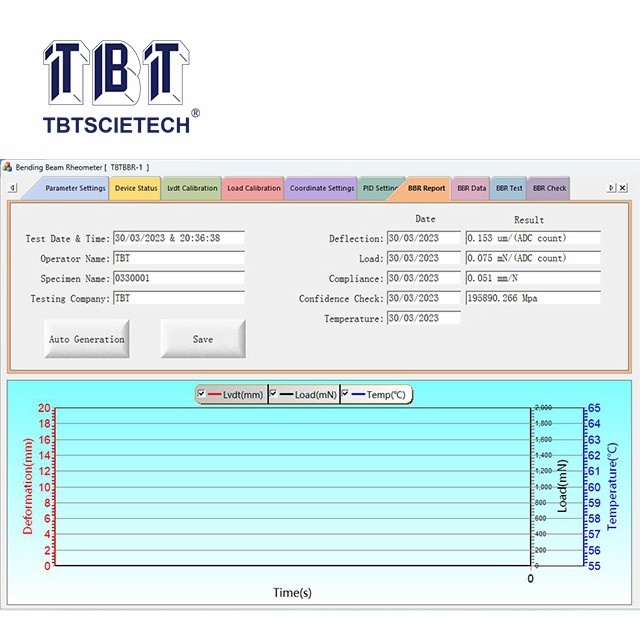

1.Industrial computer display curve of deformation, pressure and temperature in real time;
2.LVDT sensor meet standard measurement requirement;
3.Dual mode of Peltier and chiller for fast cooling from room temperature to -18℃ in 40 minutes;
4.Fluid bath temperature fluctuation within ±0.1℃ at set temperature;
5.The chiller connect to the main main host by long hose to prevent vibration;
6.Adjustable speed magnetic stirring rotor make the fluid bath temperature accurate and uniform;
7.Durable stainless steel frame has good corrosion resistance and easy to clean;
8.Time point for calculating result can be set by software;
9.Two-stage high-precision air filter prevents air impurities from affecting the test accuracy;
10.USB port support data export and connect with mouse & keyboard;
11.With Ethernet port, can connect to Internet;
12.English and Russian language operation software, other language can be customized.

Sensors

Displacement sensor range

0~10mm

Displacement sensor resolution

1μm

Pressure sensor range

0~4900mN

Pressure sensor resolution

1mN

Pressure sensor accuracy

±5mN

Temperature sensor range

-50℃~100℃

Temperature sensor accuracy

±0.1℃

Load cell

500g

Fluid bath

Fluid bath temperature range

-36℃~room temperature

Temperature control accuracy

±0.1℃

Volume

5L

Rotating speed

25r/min

Others

Specimen mould

127mmx12.7mmx6.35mm

Number of specimen

1 Pc

Creep stiffness range

20MPa~1000MPa

Data interface

USB

Power

Main host

220V, 50Hz, 1kW

Power box

220V, 50Hz, 1.8kW

Chiller

220V, 50Hz, 3kW



Main host dimension

Around 610x610x620mm

Main host weight

Around 80kg
