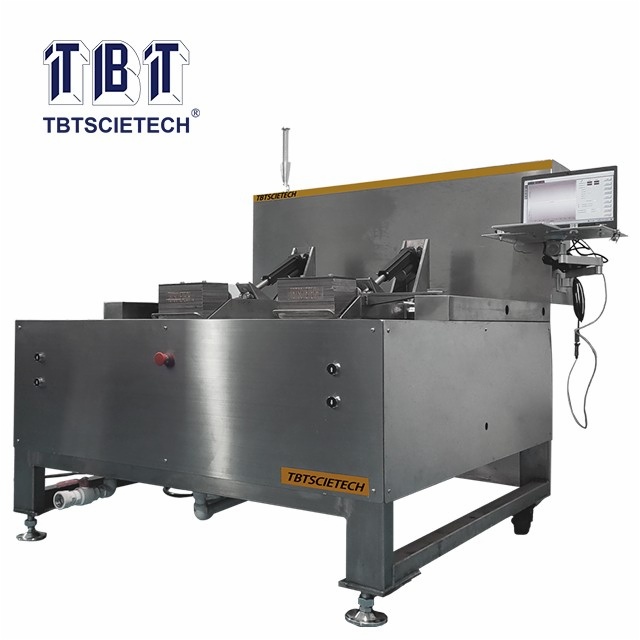

Item Code:TBTACZ-HWT Features:TBTACZ-HWT Hamburg Wheel Tracker Determination of rutting and water sensitivity of Hot Mix Asphalt (HMA), permanent deformation of asphalt mixture under moving load, by measuring the rutting depth of asphalt mixture and the number of loading times at failure, to determine due to aggregate structure Insufficient binder strength or early damage caused by water damage can be used to evaluate the effect of water damage on asphalt mixtures because the specimens can be immersed in water at a certain temperature throughout the test.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBTACZ-HWT Hamburg Wheel Tracker Determination of rutting and water sensitivity of Hot Mix Asphalt (HMA), permanent deformation of asphalt mixture under moving load, by measuring the rutting depth of asphalt mixture and the number of loading times at failure, to determine due to aggregate structure Insufficient binder strength or early damage caused by water damage can be used to evaluate the effect of water damage on asphalt mixtures because the specimens can be immersed in water at a certain temperature throughout the test.

AASHTO T324

1.Computer control for easy operation;
2.High precision displacement sensor with better than ±0.01mm accuracy under large range;
3.Fully automatic for temperature control, wheels moving, generation and storage of test results;
4.Absolute temperature sensor to collect temperature, with wide temperature control range, high precision and good stability;
5.PWM modulation mode for temperature PID control to ensure no overshoot of temperature;
6.Linear modulation of temperature and displacement sensor can ensure linearity within full scale;
7.The data collection system can collect 11 points in the area of 210mm symmetrical to the center of the test mold to obtain the average deformation, which is used as deformation value when calculating the test results;
8.Stop tests by stopping according to the number of laps or stopping OR according to the depth of the rut;
9.Using an open working platform, the test wheel can be lifted automatically, which is convenient for installation and removal of the test mold;
10.High-quality rigid stainless steel structure.

Displacement sensor

0~30mm

Displacement accuracy

±0.01mm

Temperature range

Room temperature~70℃

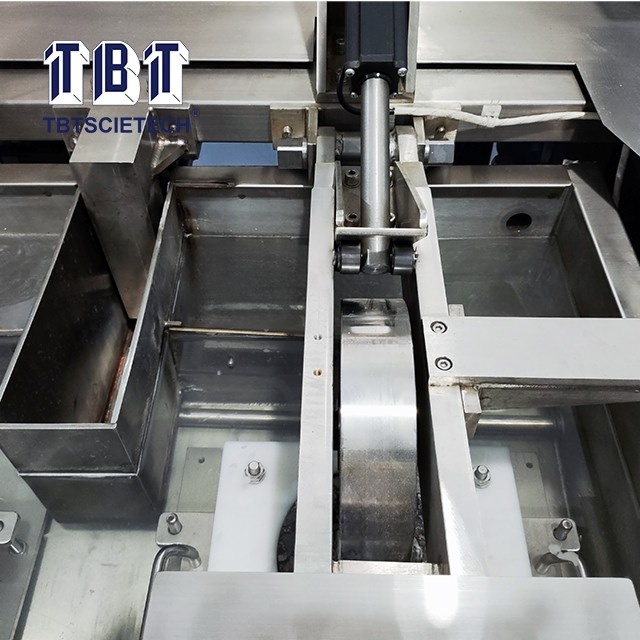

Test wheel

φ203.2mm x 47mm

Test speed

15~55 (times/min)

Walking distance

230±10mm

Test time

0~480(min)

Test times

0~30000 (times)

Specimen size

400mm×300mm×50mm

Cylindrical mould as per standard

Working method

Water immersion test

Machine power

8KW





Data Output

Sample Inflection Point(SIP)

Creep Slope/Stripping Slope

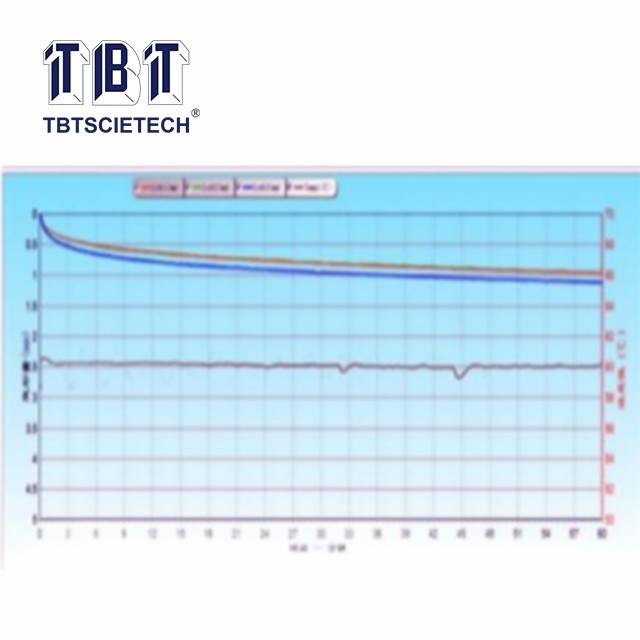

Rut Depth Profiles

Temperature

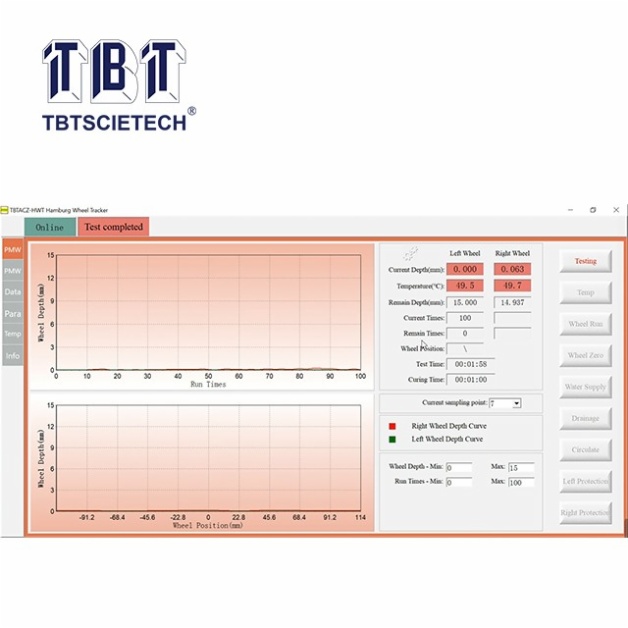

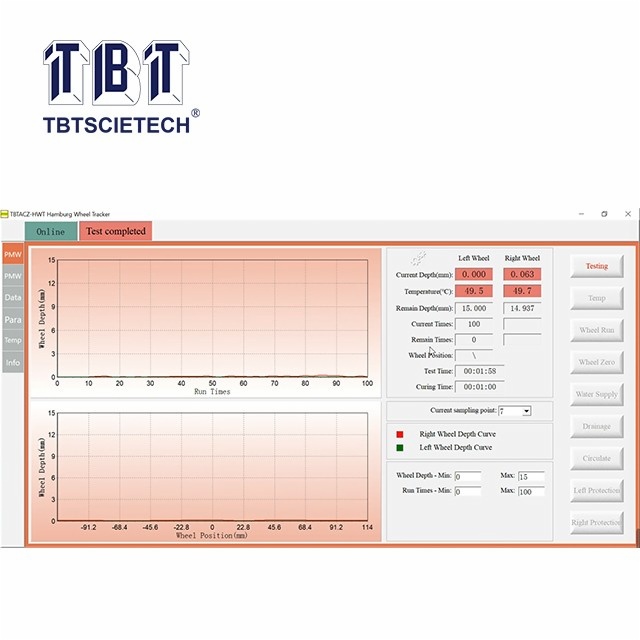

Export to Microsoft Excel

Software Compatibility

Windows XP, Vista7, 8 and 10

Overall weight

500 KG

Dimensions

1400x1600x1400 (mm)

Temperature measurement channel

2 channels

Power supply

380V, 50Hz
