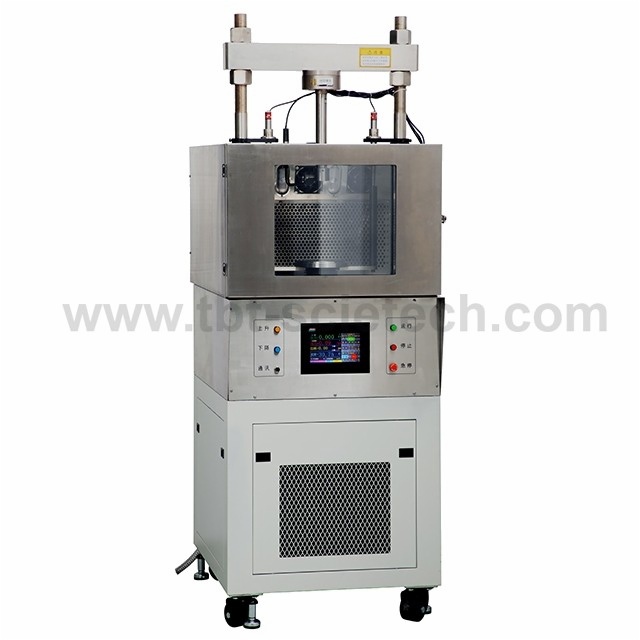

Automatic Asphalt Compression Testing Machine TBT-0730A

  • Automatic Asphalt Compression Testing Machine
  • Automatic Asphalt Compression Testing Machine
Item Code:TBT-0730A Features:
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBT-0730A is a special equipment for asphalt mixture Marshall stability test, uniaxial compression test (cylinder, prism), bending test, splitting test and freeze-thaw splitting test.

Measurement range and accuracy of pressure 1

Range (0~100)kN, accuracy ±0.01kN



Measurement range and accuracy of pressure 2

Range (0~5)kN, accuracy ±0.01kN

Range and accuracy of left displacement sensor

Range (0~20)mm, accuracy ±0.001mm

Right displacement sensor range and accuracy

Range (0~20)mm, accuracy ±0.001mm

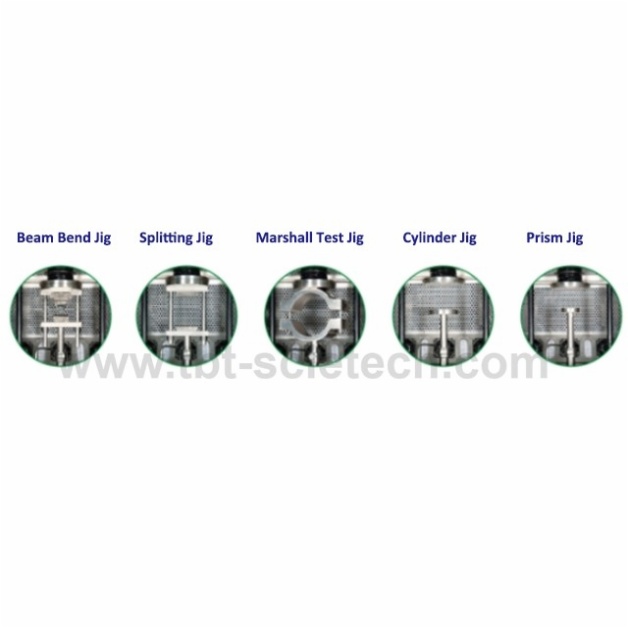

Basic configuration

Uniaxial compression measuring device,

bending measuring device,

Splitting jig, stability jig

Servo motor power

1.5kW

Test lifting speed

(1~50) mm /min

Rapid lifting speed

50mm/min

Refrigeration compressor

(220~240)V 6.5A

Color touch screen

800×480

Heating power

1.5kW

Environment box size (inside)

650×340×400 (mm)

Working environment: Ambient temperature

0℃~60℃; relative humidity: ≤85%

Working power supply

AC three-phase (380±10%) V, 3A, 50Hz

Overall dimensions of the whole machine

750 mm × 695 mm × 1775 mm

(length × width × height)
