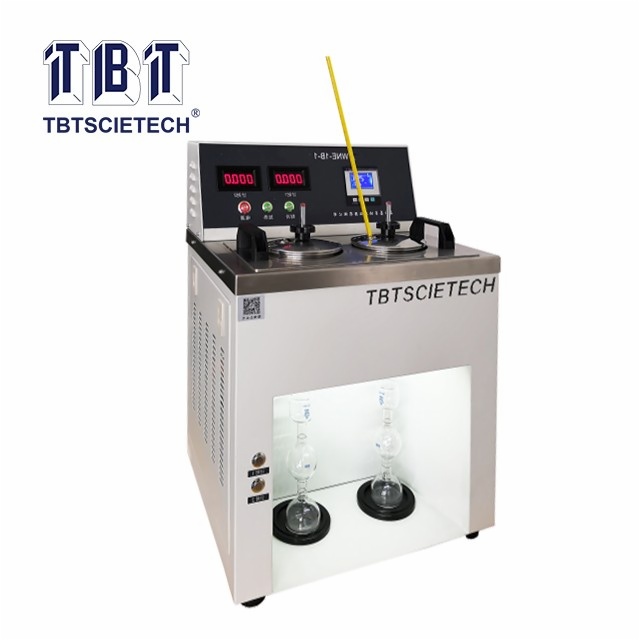

Engler Viscometer TBTWNE-1B-1

Item Code:TBTWNE-1B-1 Features:TBTWNE-1B-1 Engler Viscometer is suitable to determine the rate of time (seconds) of liquid flow out from Engler viscometer and time(seconds) of distilled water flow out at 20℃ under certain temperature and cubage.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBTWNE-1B-1 Engler Viscometer is suitable to determine the rate of time (seconds) of liquid flow out from Engler viscometer and time(seconds) of distilled water flow out at 20℃ under certain temperature and cubage.
This rate is the Engler viscosity while the unit is Engler degree.

ASTM D1665

1.Bench type design, all-in-one and double inner crucible structure. Both of inner and outer crucible adopt stainless materials. Inner crucible has been specially processed;
2.The flow out time adopts digital display. Can do parallel determination for 2 samples at the same time.Easy to use and efficiency is high;
3.The instrument adopts the semiconductor refrigeration piece.

Standard water value

K20=51±1s (when the sample is asphalt: ×0.224)

Temperature range

20~100℃

Temperature controlling

20±0.1℃, 25±0.1℃

Temperature control accuracy

±0.1℃

Specification of measuring flask

200±0.2ml

Timing

Max. 999.9s

Maximum power consumption

1200W

Ambient temperature

15~28℃

Relative humidity

≤85%RH

Dimension

Around 430×380×600mm

Power supply

220V, 50Hz
