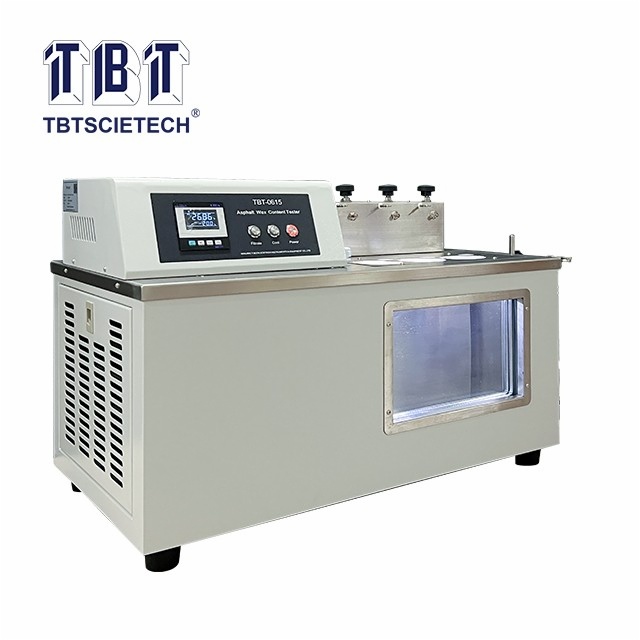

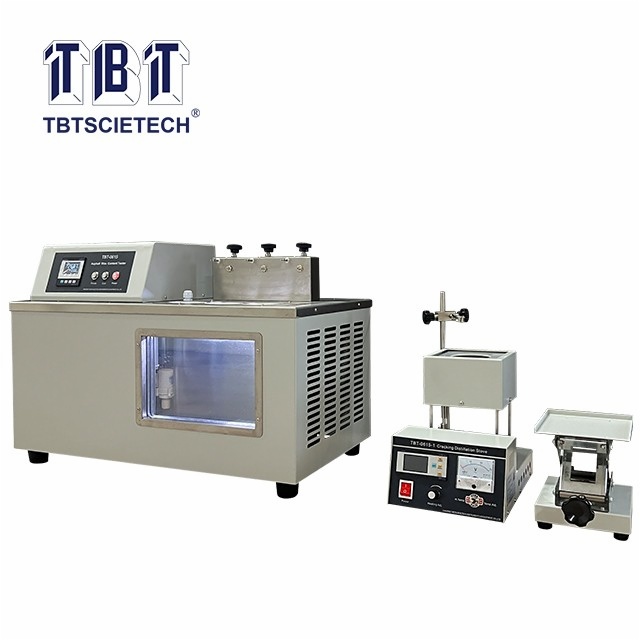

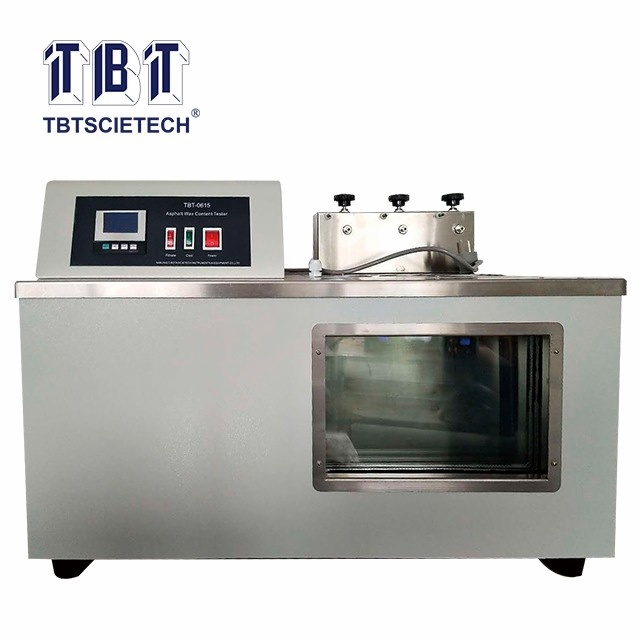

Wax Content Tester TBT-0615

  • Wax Content Tester
  • Wax Content Tester
  • Wax Content Tester
Item Code:TBT-0615 Features:TBT-0615 is designed and made as per standards of GB/T0615-2011 and ASTM D721.
  • Description
  • Referring Standard
  • Features
  • Technical Specification
TBT-0615 is designed and made as per standards of GB/T0615-2011 and ASTM D721.
It is used to determine the wax content in the petroleum asphalts by cracking distillation.

ASTM D721

1.TBT-0615 adopts method of distillation cooling to determine the wax content of sample, it’s composed by
upper part which contains stirring motor, temperature sensor, air flow distributor, hook for sample vessel and
lower part is the cooling filter;
2.The special designed air flow distributor and hook for sample vessel make the instrument more reasonable
and convenient to operate;
3.The constant temperature bath adopts glass material which has good heat preservation;
There is no mist on the observation window, makes the observation more convenient;
4.TBT-0615 equips a high accuracy digital temperature controller.

Temperature sensor

Pt100

Refrigeration medium

R404A

Temperature accuracy

±0.3℃

Working environment

30℃~40℃, RH<85

Overall dimension

Around 760mm×450mm×560mm

Power supply

220VAC 50HZ

Heating power

700W

Cooling power

1033W(under temperature of -23.3℃

Stirring rate of motor

1200 r/min
