Asphalt Binder Analyzer(Ignition Method) Manufacturer

Description
Referring Standard
Features
Technical Specification

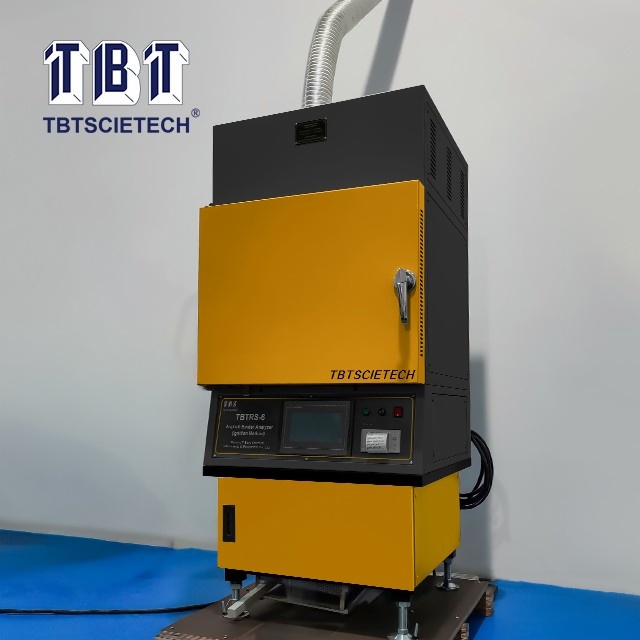

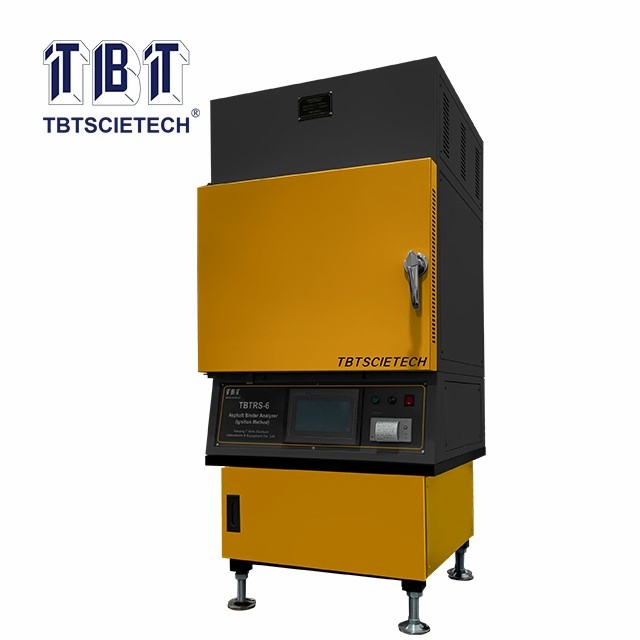

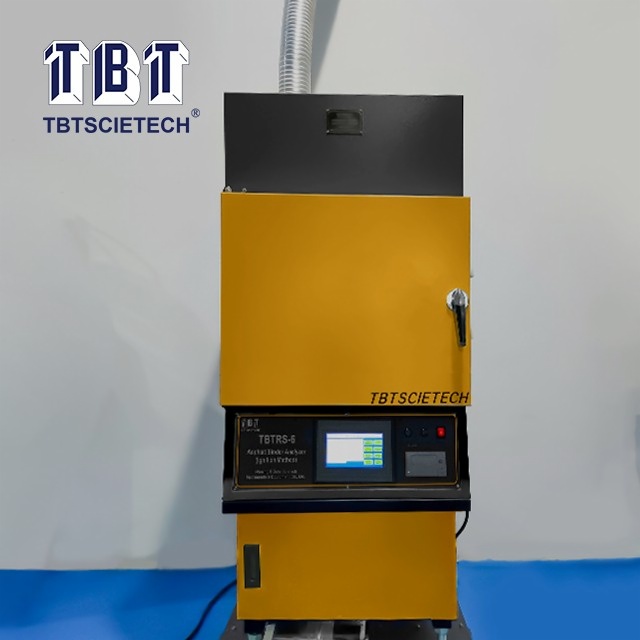

TBTRS-6 can determine the asphalt content of the asphalt mixture via ignition method rapidly, correctly, safely and reliably. This method is a valid alternative to the solvent extraction methods.

The internal data acquisition system and USA Ohaus brand electronic balance can let ignition oven automatically monitors sample weight throughout the ignition process and determines endpoint

The kit includes specimen basket, safety cover, extraction fork and metal exhaust ducting for fume exhaust.

ASTM D6307, AASHTO T308, EN 12697-39

1. The oven adopts aerospace insulation materials;

2. The heating rate is rapid and it can reach standard temperature 538℃ in the 30 minutes;

3. It adopts the second combustion function and high temperature filtration technology;

4. The software can display temperature, sample weight, weight loss, correction coefficient, asphalt content and asphalt aggregate ratio;

5. Fuzzy temperature control plan, the temperature controlling accuracy is high and it has good stability;

6. Safety protection, no use organic solvent that can damage the human’s healthy and environment;

7. Special structure can avoid state error in the high temperature at the key measuring site;

8. 7 inch industrial touch-screen controller for setting and observing;

9. Real-time display test procedure data, and it has self diagnostic function, fault code indication function;

10. Alarm indication, date storage and test result printing function will start automatically after test finish.

Max weight of sample	4000g
Commendable weight of sample	1000~2000g
Balance accuracy	±0.1g
Range	10Kg

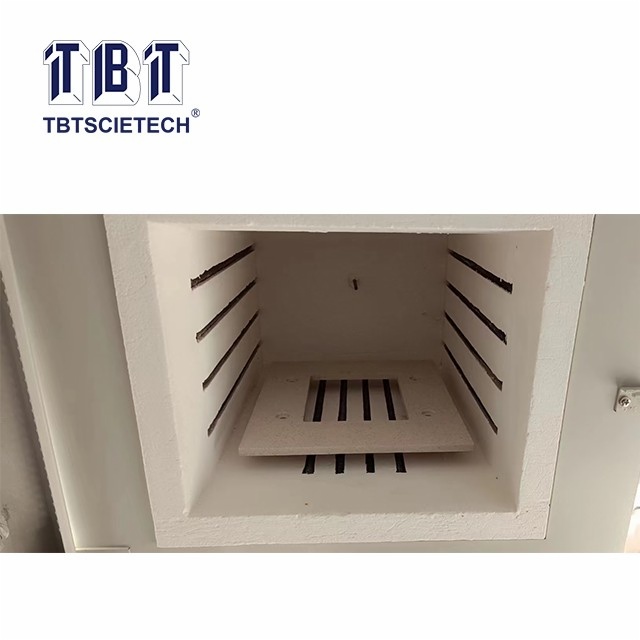

Combustion chamber	350440330mm
Max working temperature of chamber	800℃
Standard working temperature	538℃
Testing time	1200g sample takes about 30min
Power supply	220V/380V, 50 Hz

Asphalt Binder Analyzer(Ignition Method) TBTRS-6
