Asphalt Tenacity Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-0624 is designed referring to ASTM D5801 Standard Test Method for Toughness and Tenacity of Asphalt Materials. It can be used to determine the tenacity of asphalt under specified condition.

ASTM D5801

1.The device adopts the requirements of traffic industry and chemical industry. It can choose 300mm or 610mm stretch elongation. The tensile testing machine adopts double wire rod design. Stable and reliable operation, it also has high measuring precision;

2.The test software can draw load changing curve, calculate the tenacity and toughness automatically and print test report;

3.The device test and test results calculation can be finished by the computer automatically;

4.Simple design control panel which can be easy to operate and finish the determination by the uplink key, down key and the stop key. The test results calculation can be finished by the computer automatically;

5.It is equipped with A4 printer, so it can automatically draw and print out load-deformation curve, and tenacity of asphalt.

Drag speed	500mm±10mm/min
Max. drag force	1000N
Dragging force un-linear error	<0.5%
Max dragging length	610mm
Working temperature	15~35℃
Size	520x400x1220mm
Weight	100kg
Max. power consumption	≤500W
Power supply	220V, 50Hz

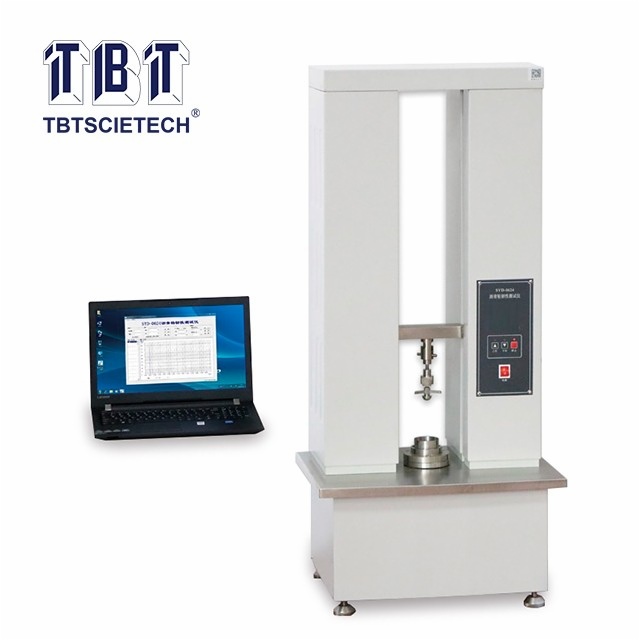

Asphalt Tenacity Tester TBT-0624
