Automatic Wheel Tracker Manufacturer

TBTACZ-5 wheel tracker is mainly used for the determination of deformation depth of bituminous mixture.

This testing helps assess the performance and durability of asphalt mixes, aiding in the design and optimization of pavement materials for long-lasting and safe road infrastructure.

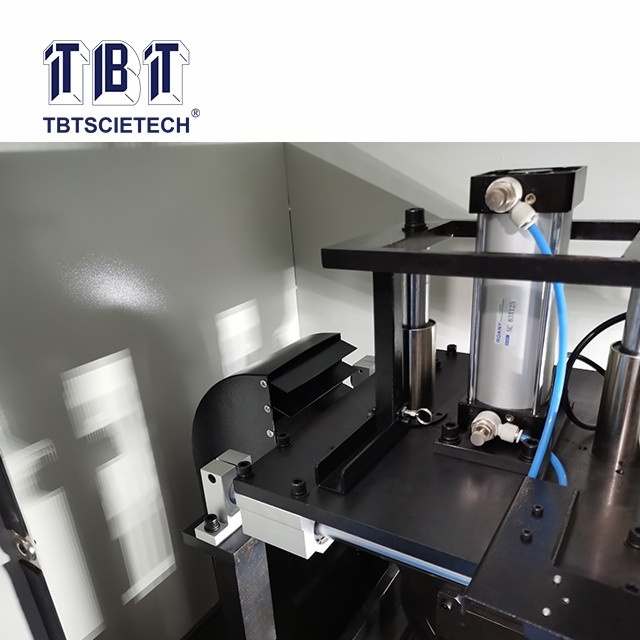

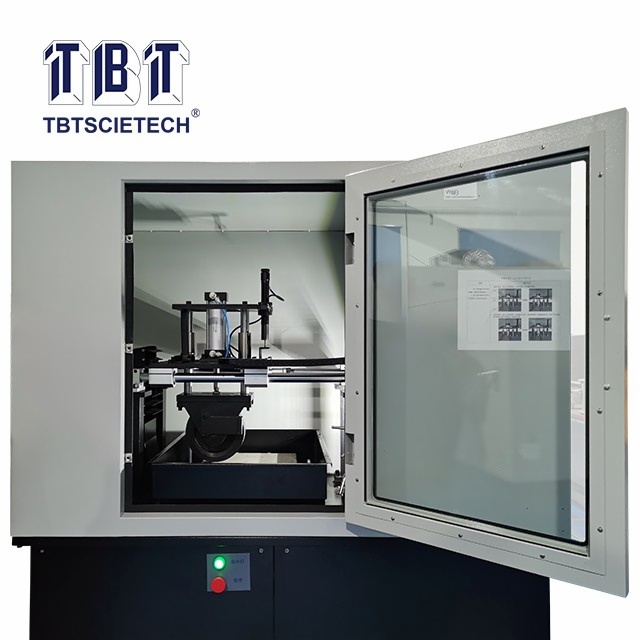

It consists of a heavy-duty rubber wheel(steel wheel optional) which can apply controlled load to simulate the vehicle wheel loading on the pavement at a fixed temperature, the wheel goes back and forth to load on the specimen with distance of 230±10mm, at speed of 53±1times/min(or customized speed).

EN 12697-22

1.Automatically control the temperature, test and save the data. Easy for checking previous testing data and output the reports;

2.Multi point data acquisition mode with advantage of high resolution and high speed;

3.Adopted PWM modulation to control the temperature, ensure there is no temperature overshoot;

4.Use absolute temperature sensor for measurement, no temperature drift; working chamber adopts air circulation which ensure the high precision temperature control;

5.Adopts high precision displacement sensor with accuracy better than ±0.01mm;

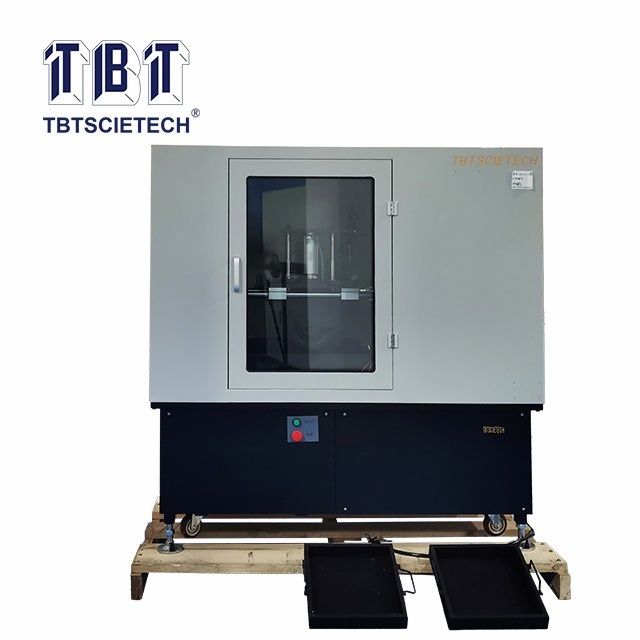

6.Integrated structure make the machine easy moving;

7.Low noise during test;

8.Laptop for convenient control.

Testing specimen quantity	1pc
Displacement measuring range	0~30mm
Displacement measuring accuracy	±0.01mm
Deformation resolution	0.001mm
Temperature control range	40~80℃
Temperature control accuracy	± 1℃
Temperature control resolution	0.1℃
Mould size	300×300×(30~100)mm (300x300x50mm as standard size, other size can be customized)
Rubber wheel hardness	78±2 at 60℃
Wheel load	0.7MPa±0.05MPa at 60℃
Wheel speed	53±1 times/minute (other speed is available)
Wheel travel	230±10mm
LVDT sensor quantity	1pc
Sample preheat quantity	3pcs
Weight	Around 350kg
Power supply	380V, 50Hz

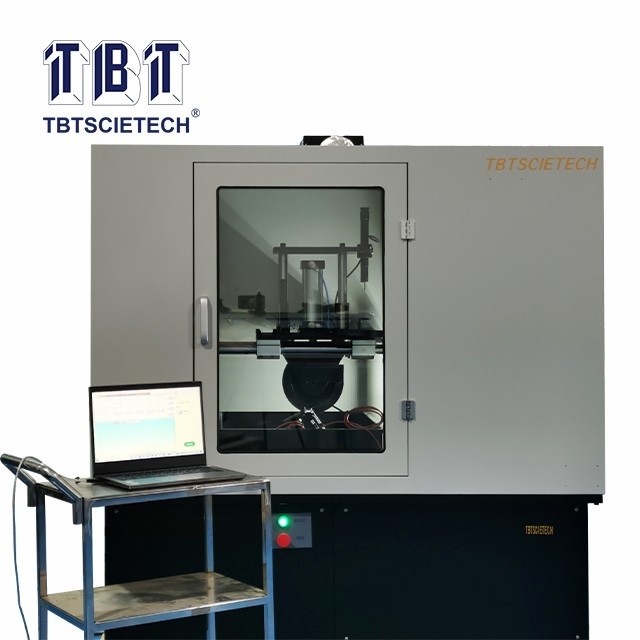

Automatic Wheel Tracker TBTACZ-5
