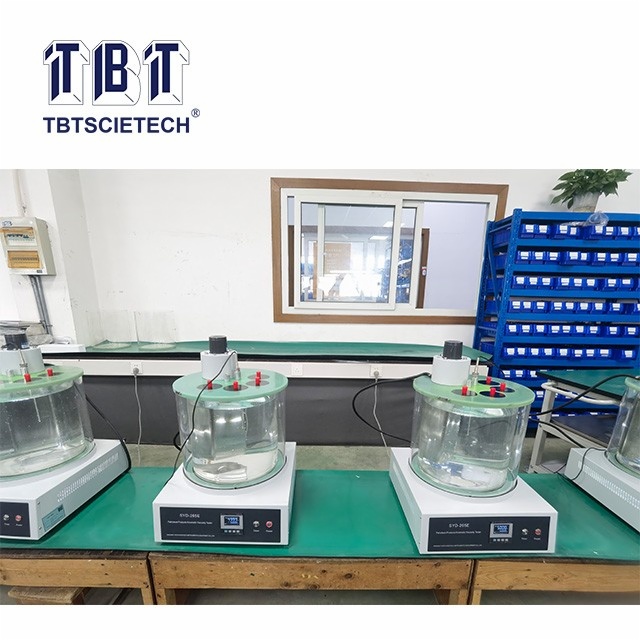

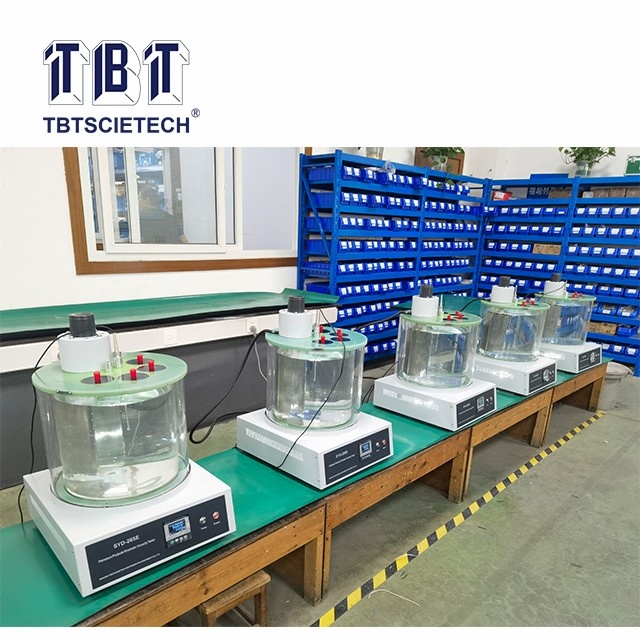

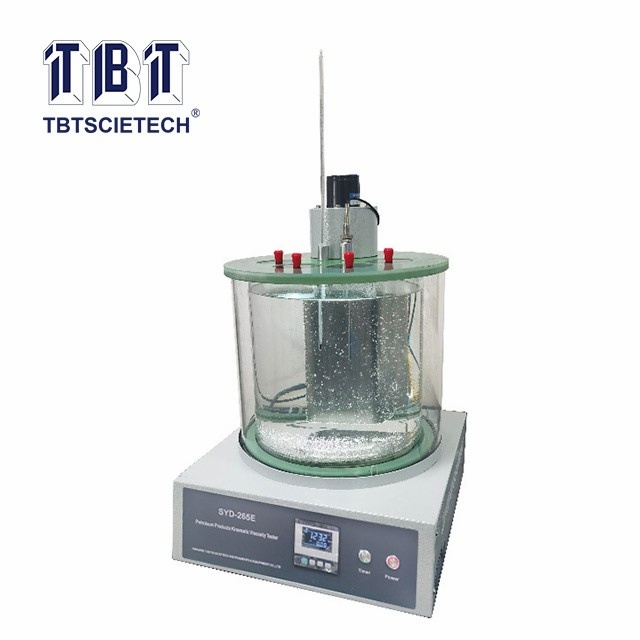

Kinematic Viscometer TBTKVM-265E

  • Kinematic Viscometer
  • Kinematic Viscometer
  • Kinematic Viscometer
Item Code:TBTKVM-265E Features:
  • Description
  • Referring Standard
  • Features
  • Technical Specification

I. Main technical features

1. High precision digital temperature controller. Electric stirring motor.

2. High temperature resistant glass bath. Double layer structure.

3. Desktop structure. All-in-one design.

4.The maximum heating temperature is 135℃(or 180℃).



Power supply

AC 220 V±10%, 50 Hz

Heating power

1700 W

Temperature range

Ambient to 135.0℃(or 180℃).

Temperature control accuracy

±0.1℃

Mercury-in-glass thermometer

Scale division 0.1℃.

    Range 100℃~150℃(for maximum 135.0℃)

    Range 100℃~150℃ and range 150℃~200℃(for maximum 180.0℃)

Bath capacity

about 23 L

Sample quantity

You can make determination using 3 capillary viscometers at a time

Stirring motor

(1) Power: 6W  (2) Speed: 1200 RPM

Ambient temperature

-10℃~+35℃

Relative humidity

<85%

Temperature sensor

RTD, Pt100



Maximum power consumption

1800 W

Capillary viscometer

One group of Cannon-Fenske Opaque capillary viscometers; 7 pieces in total. They are N0.200, 300, 350, 450, 500 and 600      (The inner diameters of R tube of them are 1.02, 1.26, 1.48, 1.88, 2.20, 3.10 and 4.00 mm respectively).



Overall dimension

530mm×400mm×670mm(Bath is included)
