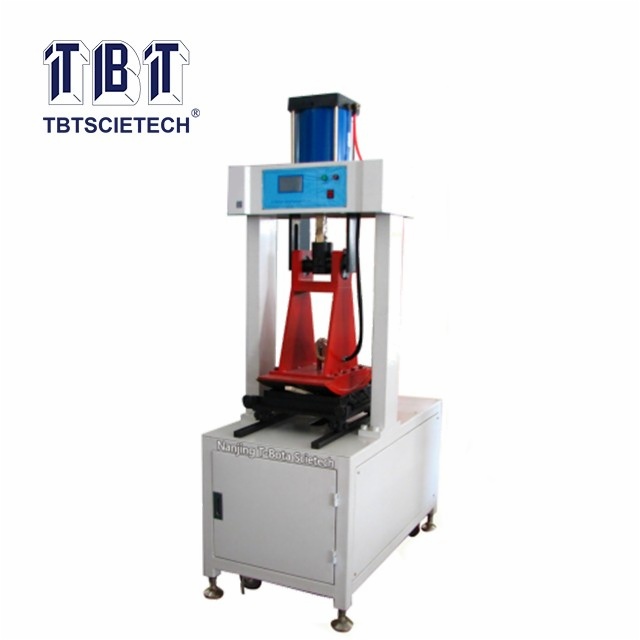

Hydraulic Wheel-Track Specimen Foaming Machine TBTACX-II

Item Code:TBTACX-II Features:
  • Description
  • Referring Standard
  • Features
  • Technical Specification

Wheel radius

500mm,

width

300mm

Wheel compaction line controlling range

200~700N/cm(can set up randomly, when ship out , can set up to 300 N/cm

Wheel compaction line load accuracy

±3N /cm

Wheel temperature control range

room temperature ~200℃

Wheel temperature controlling accuracy

±5℃

Wheel times

6times/min±0.5time/min

Wheel times

can set up by software, when ship out , default value P1: 2times , P2: 12times

Testing mould specimen

300mm*300mm*(30~100)mm

Rated capacity

380VAC, 3.0KW (need working null line)

Air sourcing requirement

Nominal capacity flow rate: 40L/min, rated discharge pressure: 0.7Mpa
