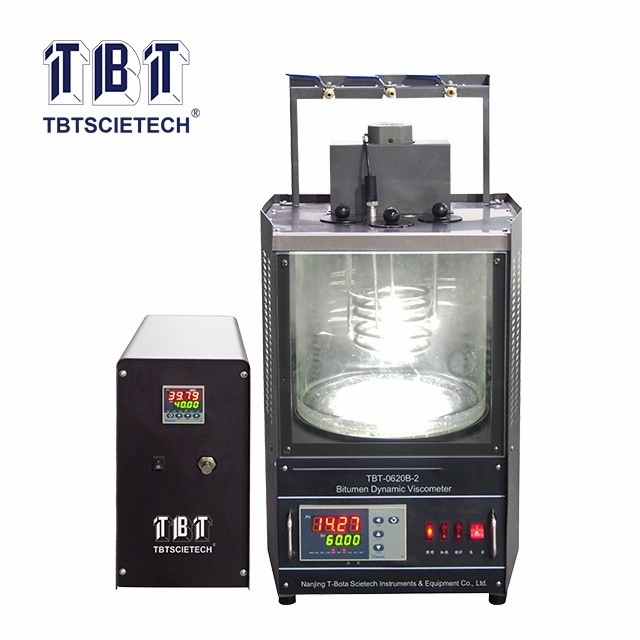

    Bitumen Dynamic Viscometer TBT-0620B-2

    Bitumen Dynamic Viscometer
    Item Code:TBT-0620B-2 Features:TBT-0620B-2 dynamic viscometer is made referring to ASTM D2171 Standard Test Method for Viscosity of Asphalts by Vacuum Capillary Viscometer.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBT-0620B-2 dynamic viscometer is made referring to ASTM D2171 Standard Test Method for Viscosity of Asphalts by Vacuum Capillary Viscometer.
    It is used to determine the dynamic viscosity of sticky petroleum asphalts by vacuum capillary viscometer.

    ASTM D2171

    1. Digital temperature controller automatically controls the temperature, measurement is accurate, and has error correction function;
    2. Disc-shaped heating tube, and the motor stirs the convection to make the heating uniform;
    3. A lighting lamp is installed under the water bath for outdoor observation;
    4. The vacuum pressure can be set, displayed by LED, and the constant pressure is automatically controlled;
    5. The test operation is convenient.

    Operating temperature

    60℃

    Rated total power

    1.8kw

    Temperature control accuracy

    ±0.03℃

    Test sample

    3pcs

    Power supply voltage

    220V, 50Hz

    Negative pressure

    40KPa±0.07KPa

    Dimensions

    420x470x700mm
