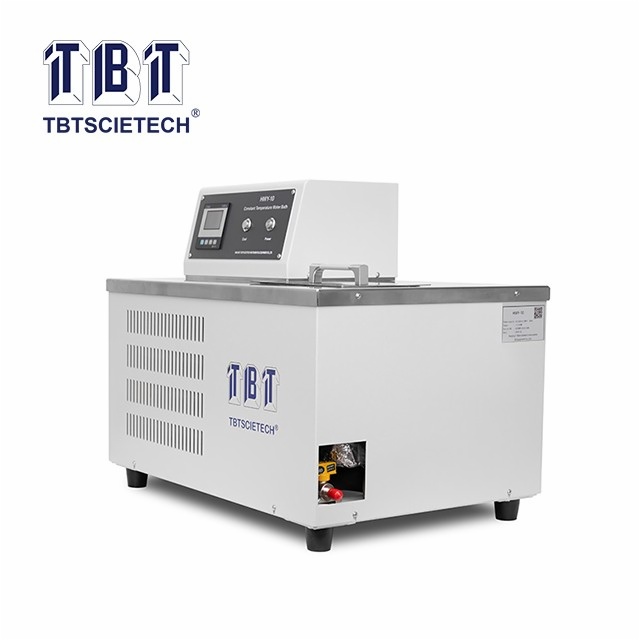

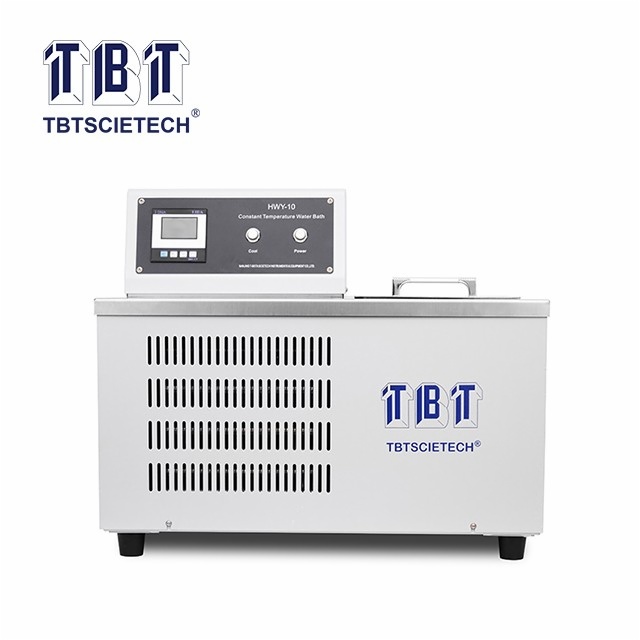

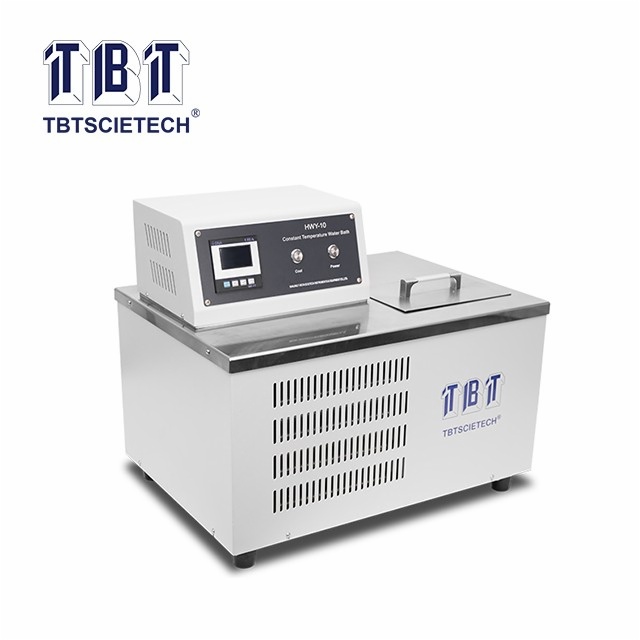

Multifunctional Constant Temperature Water Bath HWY-10

  • Multifunctional Constant Temperature Water Bath
  • Multifunctional Constant Temperature Water Bath
  • Multifunctional Constant Temperature Water Bath
Item Code:HWY-10 Features:HWY-10 water bath is specially designed and made for factories, companies, construction companies, research institutes, and colleges and universities.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

HWY-10 water bath is specially designed and made for factories, companies, construction companies, research institutes, and colleges and universities. It not only provides a constant temperature bath for high and low temperature test, but also contains a circulation device in the constant temperature bath for keeping temperature stable in other closed circulation system.

1. HWY-10 is one-piece structure, there are two sets of temperature control system, heating and refrigeration, can be set up by temperature controller, the instrument will automatically control the bath temperature to achieve constant temperature, it  can be used as the outer loop;
2. When the test is carried out blow the room temperature, opening the cooling switch. The instrument also carries on the automatic  temperature control and will keep constant temperature as set;
3. The outer surface is treated by spraying plastics, inner container is of stainless steel material.

Power supply

220V 50Hz

Volume of bath

10 L

Temperature controlling range

-10 ℃ ~ 95 ℃

Temperature controlling accuracy

±0.1 ℃

Quantity of circulated water

≥3.5 L/min

Ambient temperature

-10 ℃~+30 ℃

Relative humidity

≤85%

Dimension

Around 530 mm x 400mm x 430 mm (L x W x H)

Maximum power consumption

Not more than 1100 W
