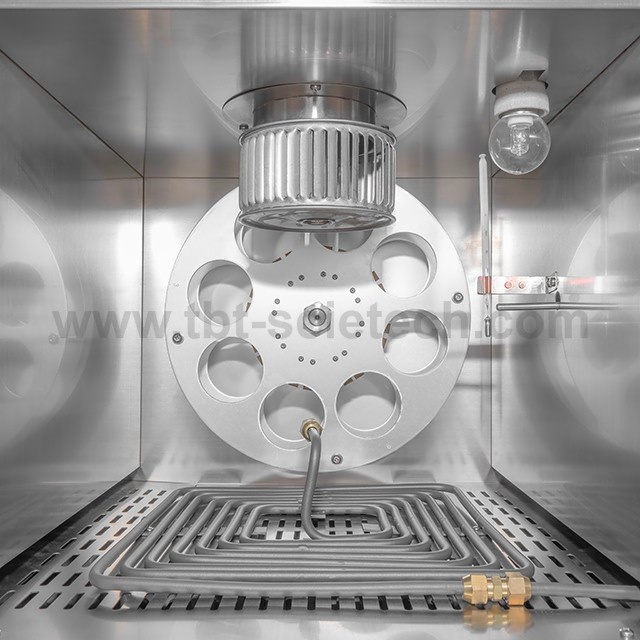

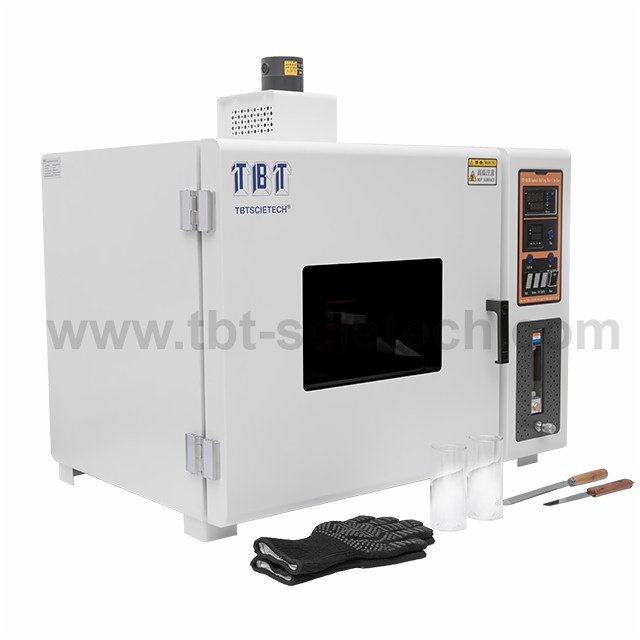

    Asphalt Rolling Thin Film Oven (RTFO) TBT-0610W

    • Asphalt Rolling Thin Film Oven (RTFO)
    • Asphalt Rolling Thin Film Oven (RTFO)
    Asphalt Rolling Thin Film Oven (RTFO)
    Asphalt Rolling Thin Film Oven (RTFO)
    Item Code:TBT-0610W Features:TBT-0610W is suitable to determine mass loss of highway asphalt rolling thin film after heating, and the change of penetration, viscosity, ductility and breaking point of asphalt residue after the thin film has been heated, so as to assess the aging performance of bitumen after simulated short term aged asphalt binder for physical property testing.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBT-0610W is suitable to determine mass loss of highway asphalt rolling thin film after heating, and the change of penetration, viscosity, ductility and breaking point of asphalt residue after the thin film has been heated, so as to assess the aging performance of bitumen after simulated short term aged asphalt binder for physical property testing.

    Referring Standard

    ASTM D2872, AASHTO T240, EN 12607-1

    Working temperature

    163℃

    Temperature control precision

    ±0.5℃

    Speed of rotating disk

    15±0.2 rpm

    Air flow rate

    4000±200 mL /min

    Motor speed

    1725±100 rpm

    Timer

    Alert at 85 min

    Ambient temperature

    15~35℃

    Relative humidity

    ≤85%

    Power supply

    220V, 50Hz

    Heating power

    2.2KW
