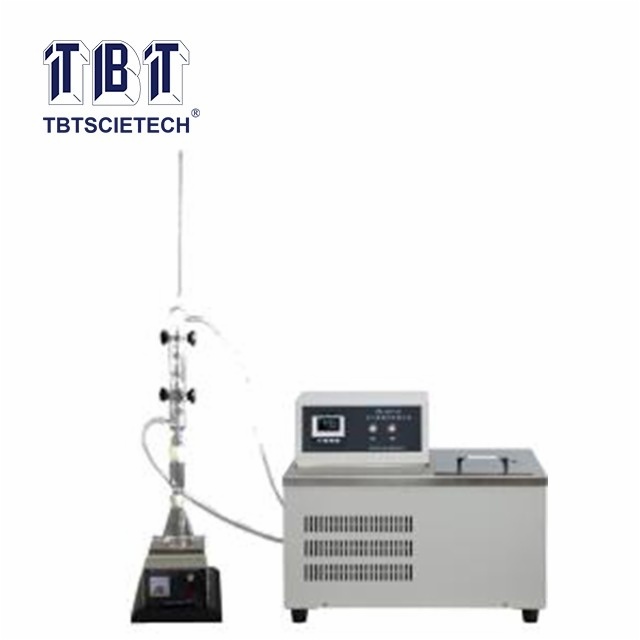

Petroleum asphalt four-component tester TBT-0618C

  • Petroleum asphalt four-component tester
  • Petroleum asphalt four-component tester
Item Code:TBT-0618C Features:
  • Description
  • Referring Standard
  • Features
  • Technical Specification



    This instrument is based on the industry standard of the people's Republic of China 0509-2010 JTG "petroleum asphalt four-component determination method" and TG E20-2011 "Highway Engineering asphalt and asphalt mixture test procedures" in T 0618-1993 "Asphalt chemical composition test (four-component method)" provides the design and manufacture of it. It is the ideal instrument for measuring petroleum asphalt saturate, aromatic, resin and asphaltene four components.

    The instrument can also refer to People's Republic of China industry standards SH / T 0266-1992 (1998) " Petroleum asphaltene content determination method" to measure diesel, fuel oil, lubricating oil, asphalt and remove low boiling point fractions of crude oil asphaltene before 260 ℃.



Heating furnace

1. Electric heater power range: 100W ~ 1000W, stepless adjustable;

2. Dimension: 270㎜ × 160㎜ × 115㎜ (length × width × height);

3. Total power consumption: less than 1200W.



Circulating water bath --HWY-10 multifunction circulation water bath



1. Bath volume: 10L;

2. Temperature range: -10 ℃ ~ 95 ℃;

3. Constant temperature accuracy: ± 0.2 ℃;

4. The cycle of water: ≥4L / min;

5. Dimensions: 530 mm × 400 mm × 430 mm (length × width × height);

6. Total power consumption: less than 1100W.

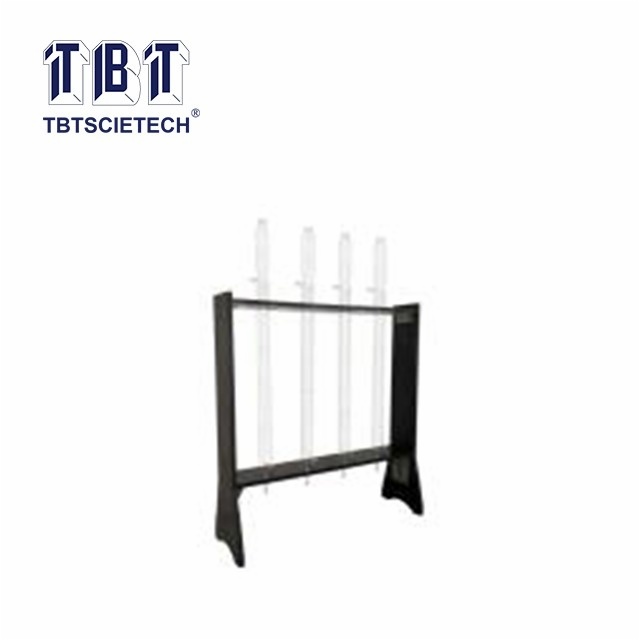

Base and column

1. Base size: 345㎜ × 210 mm;

2. Column total height: 1120 mm.





1. Vacuum drying oven: a vacuum of 267Pa (2 mm Hg);

2. High temperature furnace: 0 ℃ ~ 1000 ℃, there is an automatic temperature controller;

3. Balance: Weighing 120g, the sense of the amount of 0.1mg.
