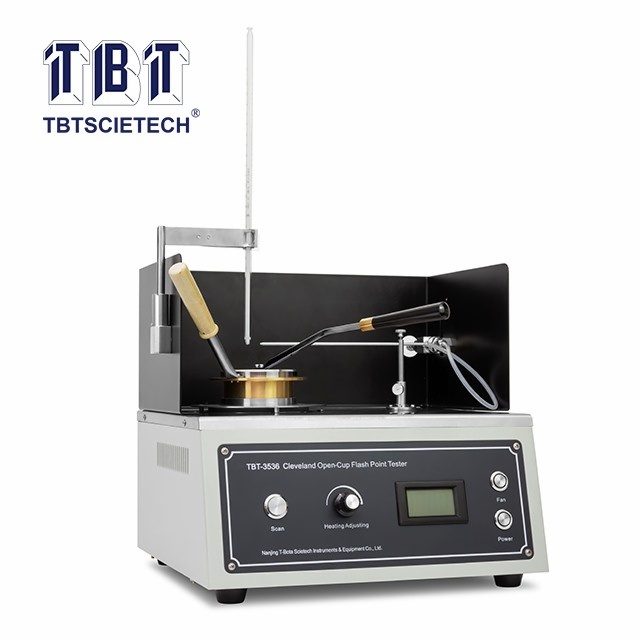

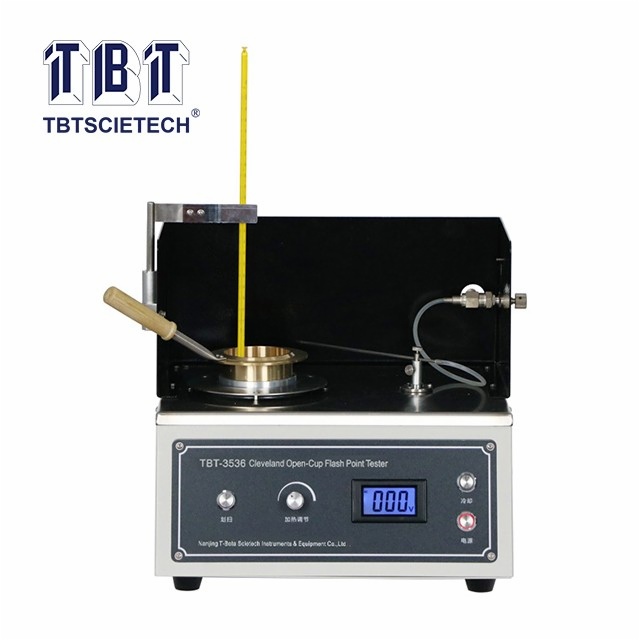

Cleveland Open-Cup Flash Manufacturer

1. It adopts special heating furnace to ensure the safety of test. The heating power is continuously adjustable. It can meet requirements of test.

2. The instrument adopts desktop structure. The stainless steel working table and furnace shell make it beautiful and elegant.

3. The instrument is fully self-contained complete. The operator can do determination as long as connecting with coal gas or other civil gas.

4. It equipped with flame extinguishing cover which accord with requirements of test.

Power supply	AC（220±10%）V, 50Hz.
Heating device	Quartz tube furnace heating, no naked fire, explosion prevented. The power is adjustable from 0W to 600W.
Test flame applicator	It applies the test flame automatically
Thermometer	(-6～400)℃. It is the same as thermometer ASTM 11C
Igniting device	(1) Ignition source: coal gas(or civil gas) (2) Flame diameter is 3.2mm～4.8mm
Ambient temperature	(-10∼50)℃
Relative humidity	≤85%
Maximum power consumption	650W
Dimension	350mm×290mm×350mm (thermometer is not included)
