    Sand Equivalent Test Apparatus TBT-0334

    • Sand Equivalent Test Apparatus
    • Sand Equivalent Test Apparatus

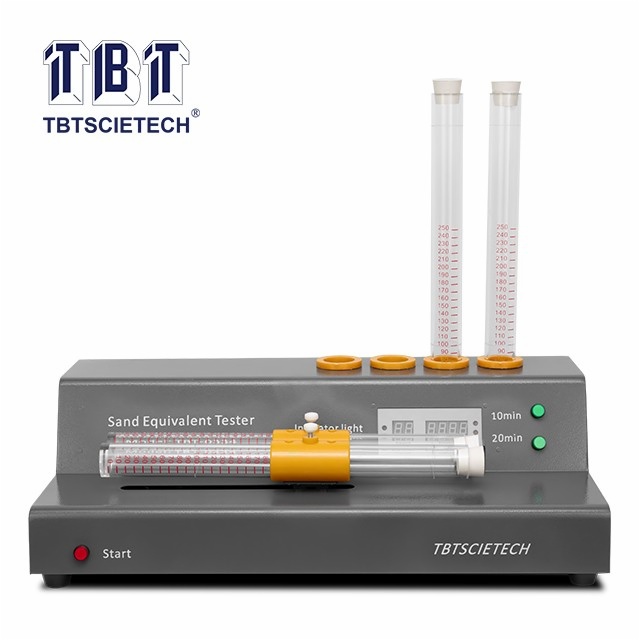

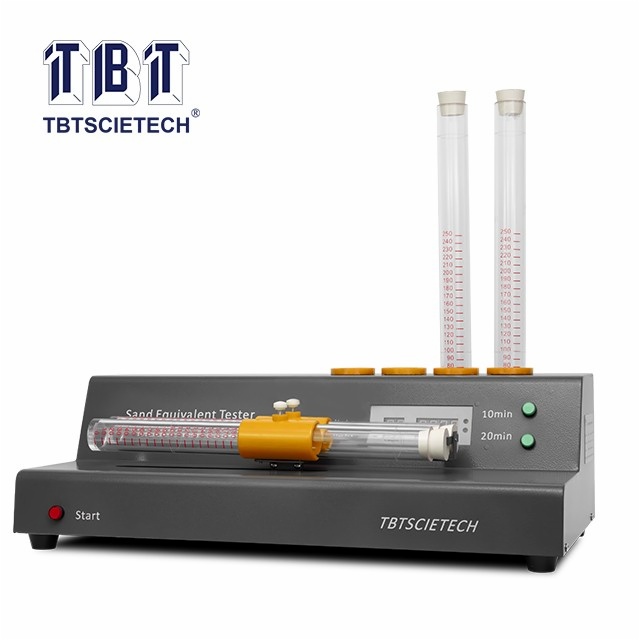

    Sand Equivalent Test Apparatus
    Sand Equivalent Test Apparatus
    Item Code:TBT-0334 Features:TBT-0334 is designed to measure the sand equivalent value in various fine aggregates, such as natural sand, manufactured sand, and stone chips.
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBT-0334 is designed to measure the sand equivalent value in various fine aggregates, such as natural sand, manufactured sand, and stone chips.
    It evaluates aggregate cleanliness by detecting soil or impurities in materials with a nominal maximum particle size of 4.75 mm or less.

    EN 933-8

    1.Rigid base for stable running;
    2.Simple panel for easy operation.

    Speed of strokes

    180±2 strokes/min.

    Stroke

    203±1mm

    Timekeeping

    10 min(600 seconds)/20 min(1200 seconds)

    Piston clump weight

    1kg±5g

    Weight

    Around 45kg

    Power supply

    220V, 50Hz
