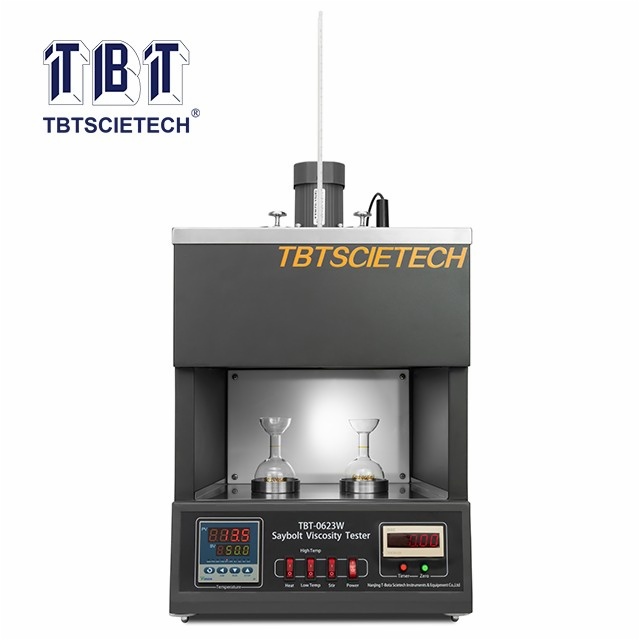

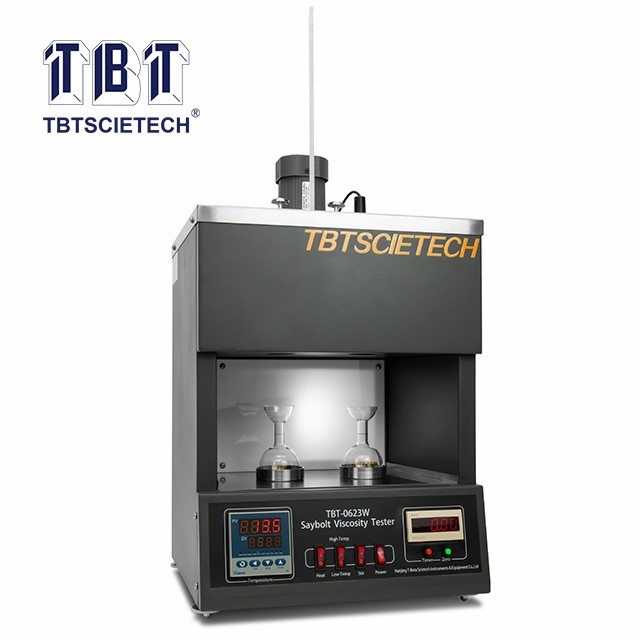

Saybolt Viscosity Tester TBT-0623W

  • Saybolt Viscosity Tester
  • Saybolt Viscosity Tester
Item Code:TBT-0623W Features:TBT-0623W Saybolt viscometer is designed as per GB/T0623 and ASTM D88 Bitumen Saybolt Viscosity Test (Saybolt Viscometer Method) in the JTJ052 Standard Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering.
  • Description
  • Referring Standard
  • Features
  • Technical Specification

TBT-0623W Saybolt viscometer is designed as per ASTM D88 Bitumen Saybolt Viscosity Test (Saybolt Viscometer Method). It is suitable to determine the Saybolt viscosity of bitumen and bituminous mixtures.

ASTM D88

1.Digital temperature controller with calibration function can provide high accurate temperature control;
2.It has selectable fast and slow heating modes;
3.The timer is convenient to be used and has automatic reset function;
4.The constant temperature bath stirring system is driven by a continuously operating motor;
5.It can test two sample tubes simultaneously.

Working mode

Double lines, parallel test

Receiving flask

60±0.05ml

Heating power of bath

600W

Working temperature of bath

Room temp. ~ 240.0℃

Temperature control accuracy

±0.1℃

Timing accuracy

±0.1s

Ambient temperature

5~35℃

Relative humidity

≤80%RH

Size

Around 360×360×790mm

Power supply

220V, 50Hz
