Bitumen PAV System (PAV & VDO) Manufacturer

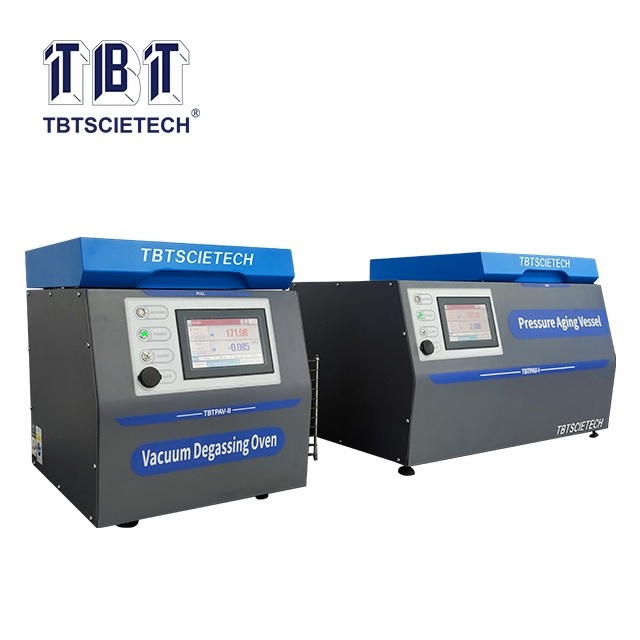

TBTPAV-II Bitumen PAV System consists of TBTPAV-I Pressure Aging Vessel(PAV) & TBTPAV-II Vacuum Degassing Oven(VDO).

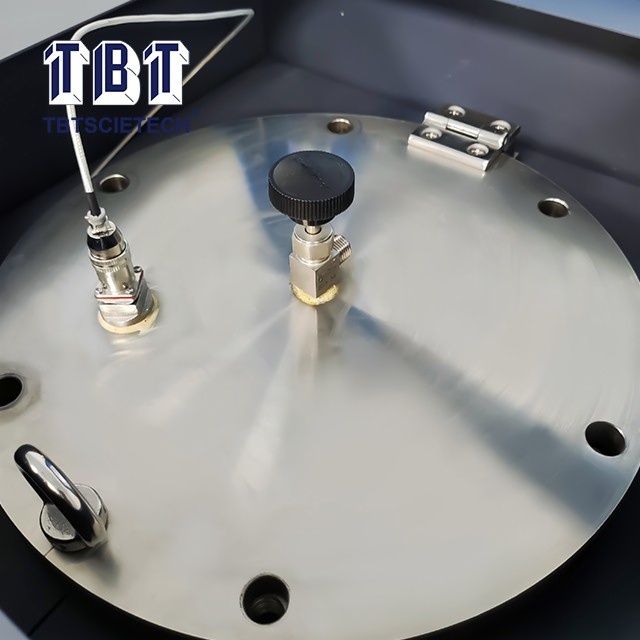

TBTPAV-I Pressure Aging Vessel(PAV) simulates the accelerated aging process of asphalt binders in service on road by high pressure and temperature.

TBTPAV-II Vacuum Degassing Oven(VDO) removes air bubbles created during the in-service oxidative ageing of asphalt binder.

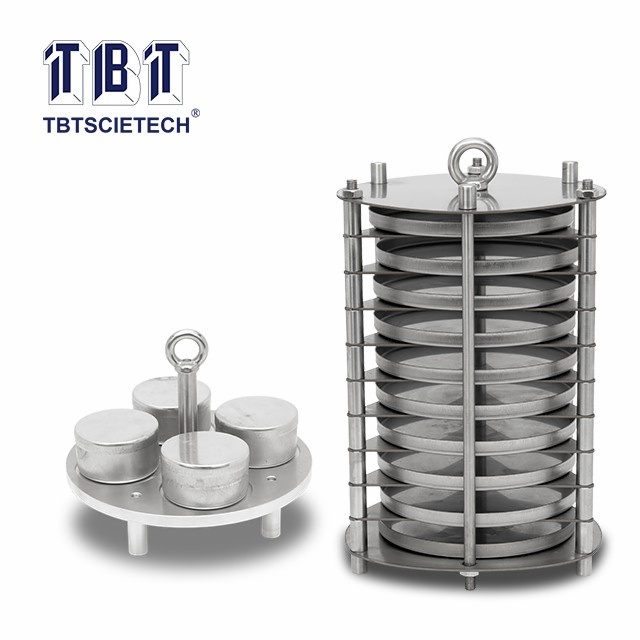

The method is first aged using T 240(RTFOT, TBT-0610W is suitable model). A specified thickness of residue, from the RTFOT, is then placed in stainless steel pans and aged at the specified aging temperature for 20h in a vessel pressurized with air to 2.10 MPa. The aging temperature is selected according to the grade of the asphalt binder. At the completion of the PAV process, the asphalt binder residue is then vacuum degassed.

TBTPAV-II system is certified by Regulations of Safety Supervision of ISO 9001 quality management system.

ASTM D6521, AASHTO R28, EN 14769

1.Touch screen controller can display temperature and pressure in real time;

2.Delay start preheating function;

3.Display and calculate temperature error time according to standard;

4.Support remote control via computer;

5.With USB communication port, data can be exported easily;

6.PAV can run the aging process up to 99 hours;

7.High accuracy temperature control;

8.Automatic pressure release and prevent overshoot function;

9.The pressure chamber Max. pressure is designed 8 times based on rated work pressure.

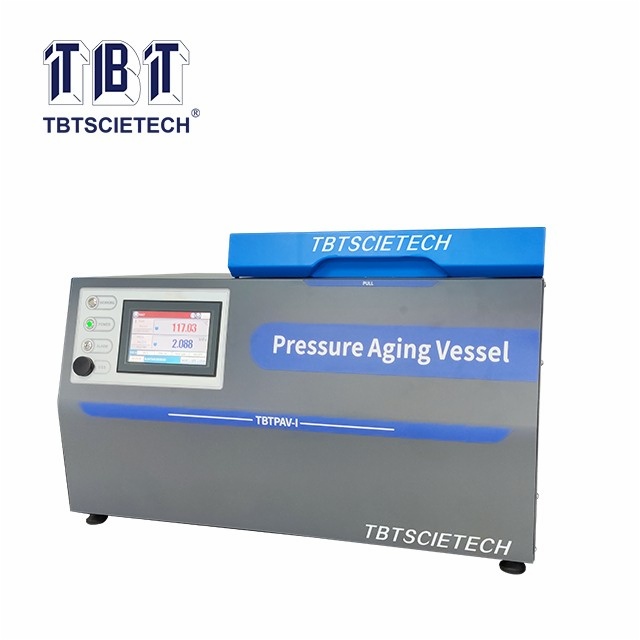

TBTPAV-I Pressure Aging Vessel

Power supply	220V, 50Hz
Working medium	Air
Rated working temperature	80~115℃
Rated working pressure	2.1Mpa
Pressure controller accuracy	±0.01Mpa
Temperature controller accuracy	±0.1℃
Time segment	64x1080min
Control method	Touch screen or remote control
Size	845x540x545mm

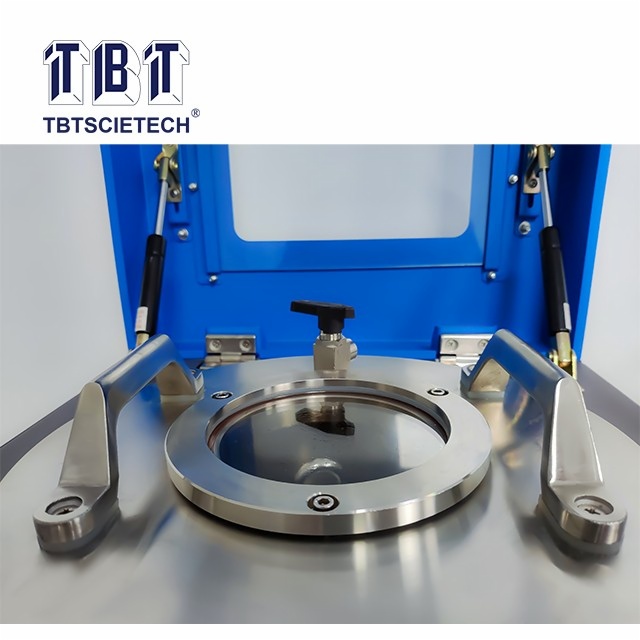

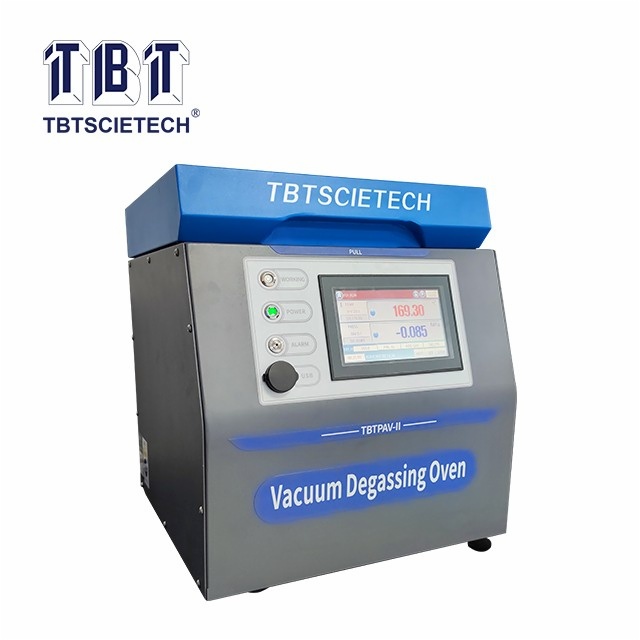

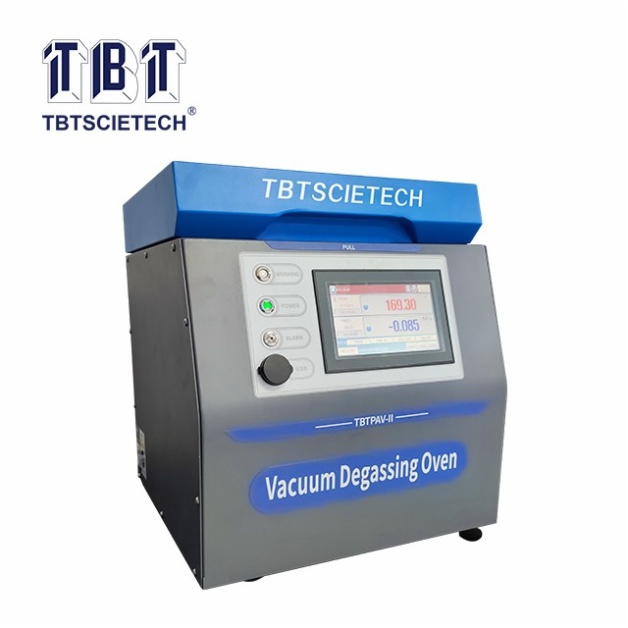

TBTPAV-II Vacuum Degassing Oven

Power supply	220V, 50Hz
Working medium	Air
Rated working temperature	170℃
Rated working pressure	Absolute pressure 15Kpa
Temperature control accuracy	±2℃(standard requested±5℃)
Control method	Touch screen or remote control
Size	440x515x525mm

Bitumen PAV System (PAV & VDO) TBTPAV-II
