Engler Viscometer Manufacturer

Description
Referring Standard
Features
Technical Specification

1. The instrument adopts desktop, all-in-one and double inner crucible structure. Both of inner and outer crucibles adopt stainless materials. Inner crucible has been specially processed. The smooth finish corresponds with the test requirements.

2. The flow out time adopts digital display. Can do parallel determination for 2 samples at the same time. Easy to use and efficiency is high.

3. The temperature controller adopts digital display temperature controller with P,I,D position regulatory function. Easy to set the parameters and temperature controlling precision is high.

Power supply	AC（220±10%）V, 50Hz
Standard water value	(51±1)s
Temperature range	(0～100)℃
Temperature control accuracy	±0.1℃
Engler viscosity thermometer	Correspond with GB/T 514
Specification of measuring flask	(200±0.2) ml
Inner crucible	Stainless steel material
Timing	Max 999.9s
Timing mode	LED electronic timing
Heating power	700W
Ambient temperature	(-10～+40)℃
Relative humidity	≤85%
Dimension	430mm×410mm×620mm
Maximum power consumption	800W

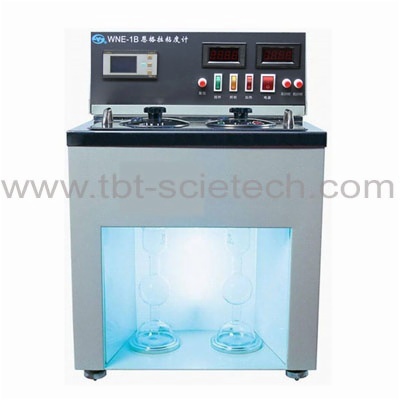

Engler Viscometer TBTWNE-1B
