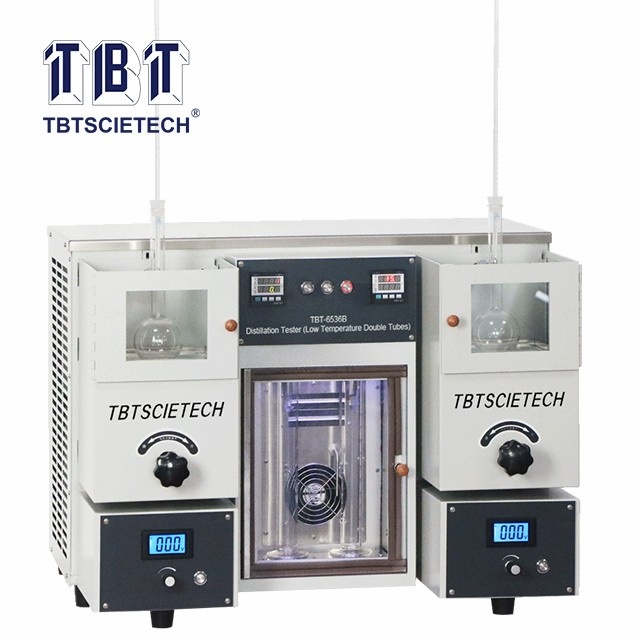

Distillation Tester (Low Temperature Double Tubes) Manufacturer

TBT-6536B is designed referring to ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.

ASTM D86

1.It adopts dual tubes design which can perform independent testing of a single tube or simultaneous testing of two samples in same specifications;

2.Special heating furnace which eliminate open flames for test safety;

3.LCD display voltmeter for voltage adjustment, allowing for continuous adjustment of heating power;

4.Openable heating chamber observation window and rotary lifting type heating furnace for safe and convenient operation;

5.Compact design screw compressor refrigeration system can make cooling rapidly, and can reduce the bath temperature from room temperature to 0℃ in approximately 50 minutes;

6.The condensate water bath has temperature control function, it supports to set the range of 0~60℃, ensure uniform temperature and ±0.5℃ temperature control accuracy;

7.A closed-loop condensation system with internal circulation, no need separate water bath which has risk of leakage and icing.

Cool mode	Compressor refrigeration
Receiving cylinder	100ml, division value is 1ml
Distillation flask	125ml
Thermometer	-2~300℃ and -2~400℃, division value 1℃
Flask support board	SiC, bore diameter is φ32mm, φ38mm, φ50mm
Temperature control range	0~60℃
Temperature accuracy	±0.5℃
Heating power	1300Wx2
Working temperature & humidity	15~28℃; ≤85%RH
Size	700×520×520mm
Weight	59kg
Power supply	220V, 50Hz

Distillation Tester (Low Temperature Double Tubes) TBT-6536B
