Automatic Kinematic Viscometer Manufacturer

Description
Referring Standard
Features
Technical Specification

1. Automatic and multifunctional. It is used to determine the viscosity of petroleum products and dilute solution of polymers.

2. SCM technology. Automatic temperaturing, sampling, determining, cleaning,drying and data transmitting.

3. Equipped with a notebook PC. All procedures including test control, calculation, result analyzing, data printing and saving can be operated on the PC. Easy to use.

4. Ubbelohde viscometers are equipped which have Self-detect function. No need to change viscometers during the test. The test items can be selected on menu of PC.

5. A special low-temperature circulatory water bath is optional for low temperature viscosity tests.

Viscometer tube	Ubbelohde viscometer (Dilution type). As per GB/T1632-93
Temperature range	Ambient to 100.0℃(A special low-temperature circulatory water bath is optional for low temperature viscosity tests.)
Temperature control accuracy	±0.01℃
Timing accuracy	±0.01s
Timing range	0.0s~ 999.9 s
Power supply	(220±10%)V，50Hz
Maximum power consumption	1000W
Ambient temperature	(0~40)℃
Relative humidity	(20~80)%
Barometric pressure	(96~103)kPa
Dimension	570㎜×470㎜×510㎜Circulatory bath, vacuum suction apparatus
Net weight	22.5kg（Circulatory bath, vacuum suction apparatus and PC are not included）

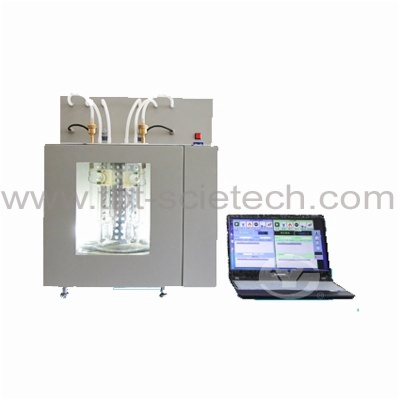

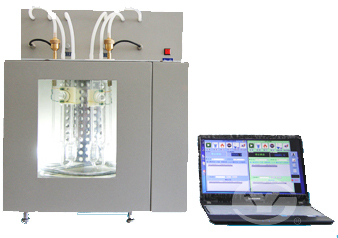

Automatic Kinematic Viscometer TBT-265H-1
