Fully-automatic Pensky-Martens Closed Cup Flash Point Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTPCF-93D is designed referring to ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester.

It is used to make determination of the closed cup flash point of the petroleum products.

ASTM D93

1. Color LCD touchscreen with menu-guided input prompts for parameters such as pre-set temperature, sample number, atmospheric pressure, and test date;

2. Simulates and displays the temperature rise versus test time function curve;

3. Equipped with standard RS-232 and 485 computer interfaces. The lower-level computer stores 120 sets of historical data. Connecting to a computer allows for large-capacity data storage and long-term data transfer;

4. Can calculate atmospheric pressure correction values;

5. Automatic completion of opening the lid, electronic ignition, detection and data printing; forced air cooling.

Temperature range	Room temperature~400℃
Temperature resolution	0.1℃
Repeatability	≤2℃
Reproducibility	≤4℃
Ignition device	Electric ignition or gas flame
Total power consumption	≦400W
Working temperature & humidity	15~40℃, ≤85%RH
Size	505×320×310mm
Weight	16kg
Power supply	220V, 50Hz

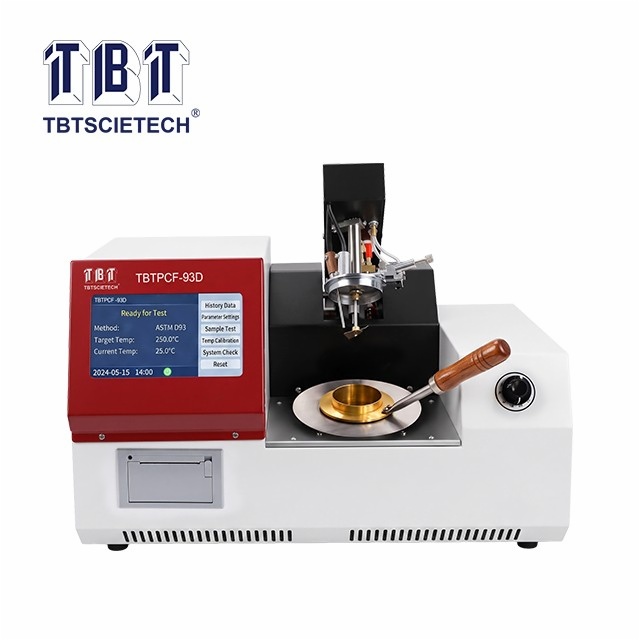

Fully-automatic Pensky-Martens Closed Cup Flash Point Tester TBTPCF-93D
