Distillation Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-6536A is designed referring to ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.

ASTM D86

1.It adopts dual tubes design which can perform independent testing of a single tube or simultaneous testing of two samples in same specifications;

2.Special heating furnace which eliminate open flames for test safety;

3.Two independent digital temperature controllers for two tubes heating power separately adjustment;

4.LCD display voltmeter for voltage adjustment, allowing for continuous adjustment of heating power;

5.The condensate water bath has temperature control function, it supports to set the range of room temperature+10~60℃, ensure uniform temperature and ±0.5℃ temperature control accuracy;

6.304 stainless steel condensation tank provides corrosion-resistant and long service life.

Cool mode	Compressor refrigeration
Receiving cylinder	100ml, division value is 1ml
Distillation flask	125ml
Thermometer	-2~400℃, division value 1℃
Flask support board	SiC, bore diameter is φ50mm
Temperature control range	Room temperature+10~60℃
Temperature accuracy	±0.5℃
Heating power	1300Wx2
Working temperature & humidity	15~35℃; ≤85%RH
Size	760×520×500mm
Weight	40kg
Power supply	220V, 50Hz

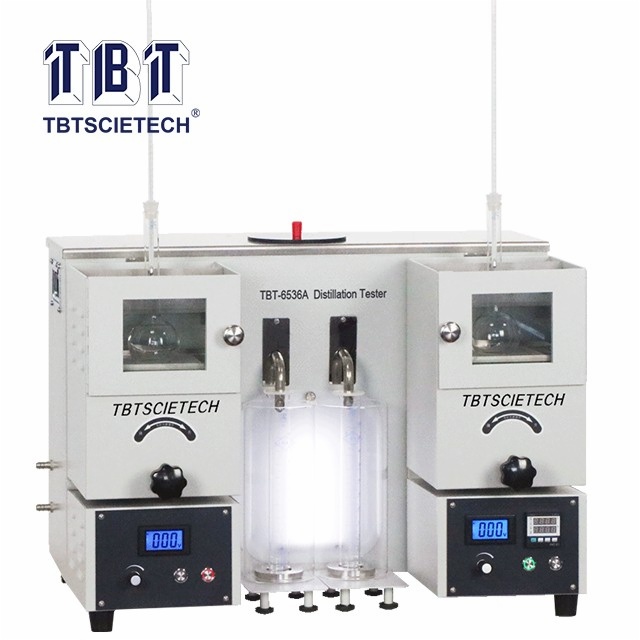

Distillation Tester TBT-6536A
