Fully-automatic Cleveland Open Cup Flash Point Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-3536D is designed referring to ASTM D92 Standard Test Method for Flash and Fire Points by Cleveland Open Cup Tester.

It can be used to determine the flashpoint of all petroleum products with flash points above 79℃ and below 400℃ except fuel oils.

ASTM D92, AASHTO T48, ISO 2592

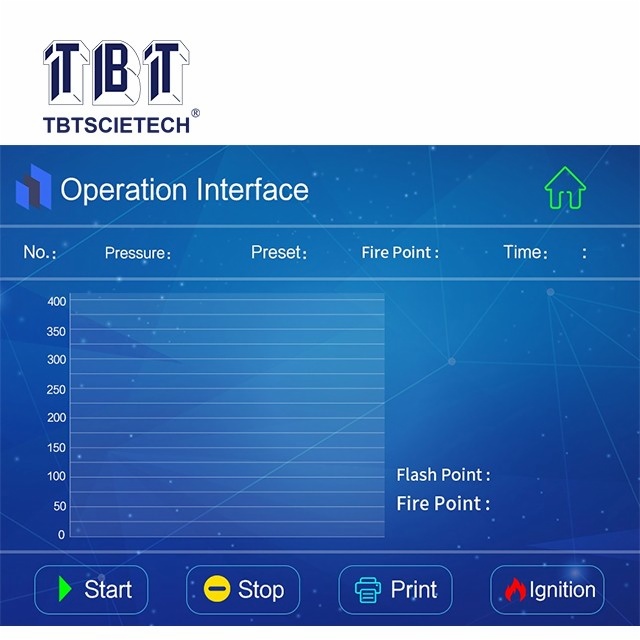

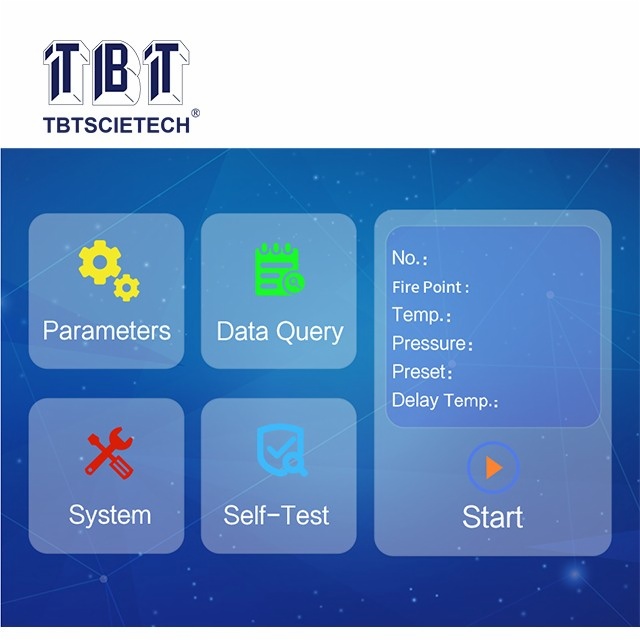

1. 8-inch IPS high-definition screen, 32-bit ARM processor, 24-bit high-precision AD chip, real-time recording of data, status and display curve;

2. Automatic measurement of atmospheric pressure and automatic correction of flash point value;

3. Equipped with a Bluetooth interface to connect with computer for data collection and analysis;

4. Electronic ignition, gas flame;

5. Adjust the size of the flame via high-precision regulating valve;

6. The data is stored in the cloud. Records can be viewed anytime and anywhere, and remote prediction, abnormal warning, comprehensive evaluation of operating status, and maintenance can be performed.

Flash point determination	Range: Ambient to 400℃ Accuracy: 0.1℃
Heating rate	Initial heating 14~17℃/minute It is 5~6℃/minute after reaching the preset flash point 20℃
Igniting mode	Electric ignition Diameter of igniter nozzle: 0.7~0.8mm
Flash point detection type	Automatic & manual via press button
Data transmission mode	Bluetooth
Total power consumption	≦750W
Working temperature & humidity	15~35℃, ≤85%RH
Size	510×320×330mm
Power supply	220V, 50Hz

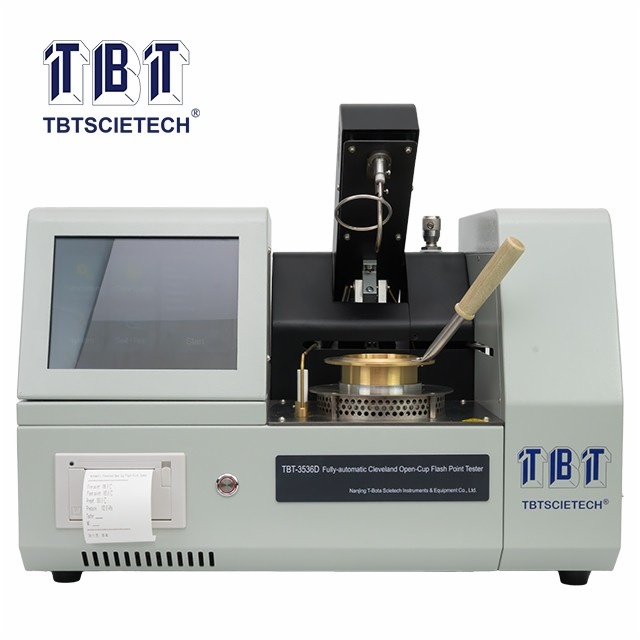

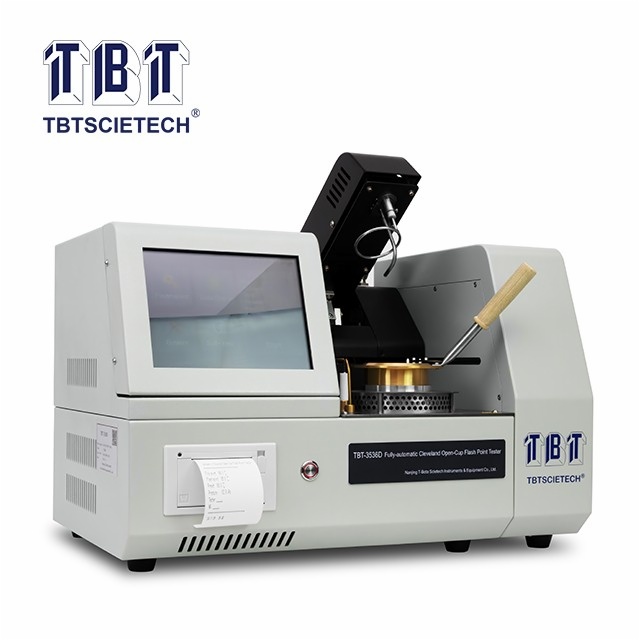

Fully-automatic Cleveland Open Cup Flash Point Tester TBT-3536D
