Digital Display Oxygen Bomb Calorimeter Manufacturer

Description
Referring Standard
Features
Technical Specification

TBTXRY-1A is used to determine calorific value of combustible materials(heat capacity is 14000~15000J/K) such as petroleum products without water(gasoline, jet fuels, diesel oil and fuel oils), coal, coke and paraffin, etc.

ASTM D240

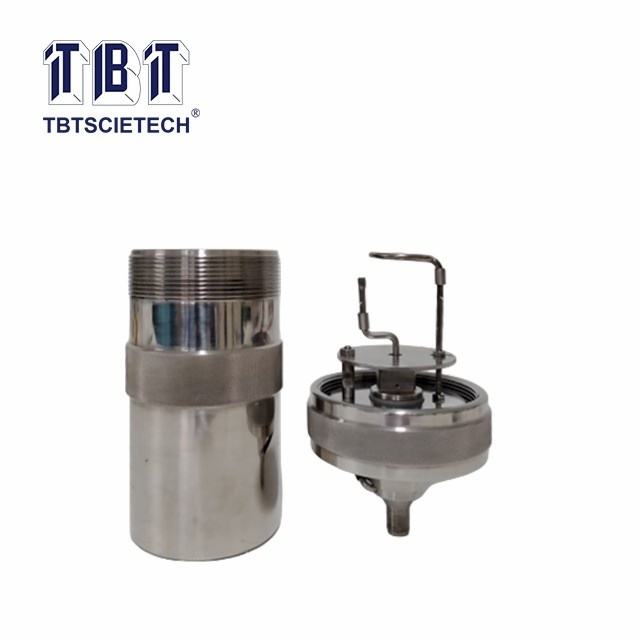

1.The device adopts sealed oxygen bomb. The whole structure adopts stainless steel material. The strength is enough to resist the max pressure (60~70 atmospheric pressure) when the solid burning. It can resist the bigger pressure when liquid fuel burning;

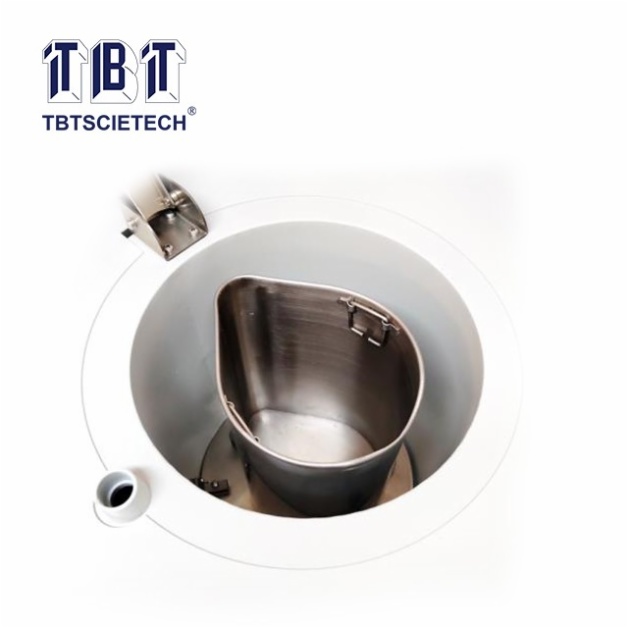

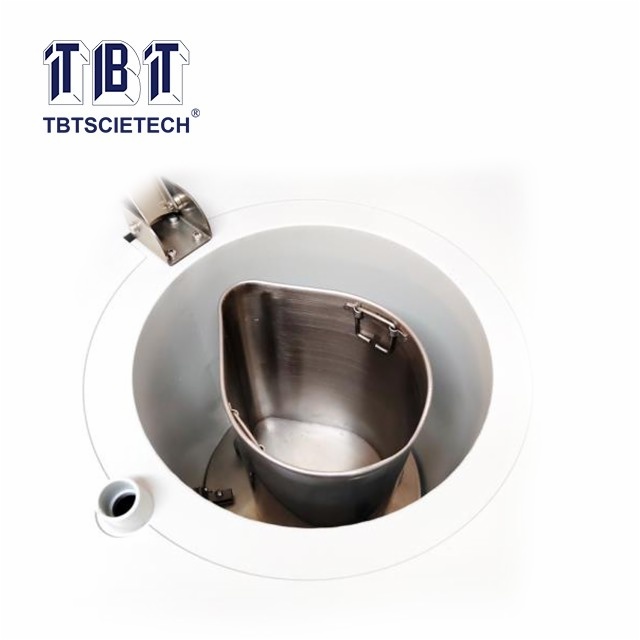

2.The inner water cylinder is full stainless steel material. The cross section is pyriform and the capacity is 3kg;

3.The water cylinder is equipped with electric stirrer inside which ensures the uniform temperature;

4.The external water jacket is double layer container. It filled with water when doing determination. It make the water temperature in the cylinder uniform by water jacket stirrer and form the constant temperature environment meeting the requirements of test.

Heat capacity	14000~15000J/K
Resolution	0.001K
Measurement accuracy	±60J/g
Repeatability	≤0.2% (Grade C)
Pressure endurance of oxygen bomb	20MPa
Data saved	31 pieces
Working temperature & humidity	20±5℃(the fluctuation is not more than 1℃ during one test), ≤85%RH
Power supply	220V, 50 Hz

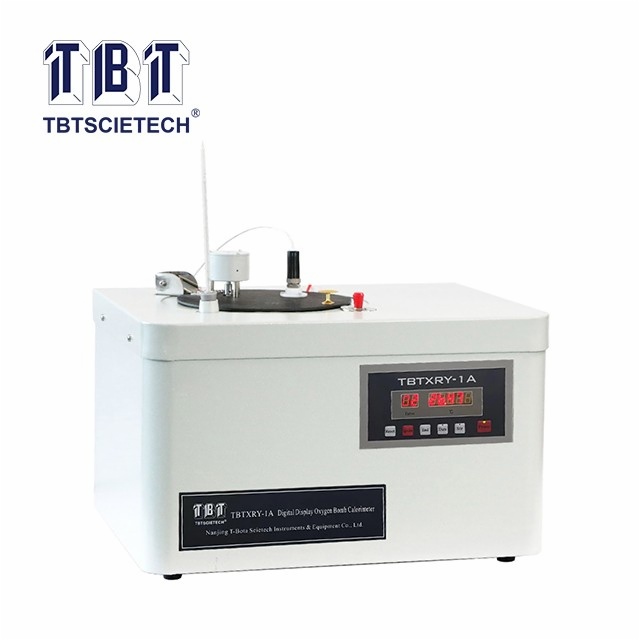

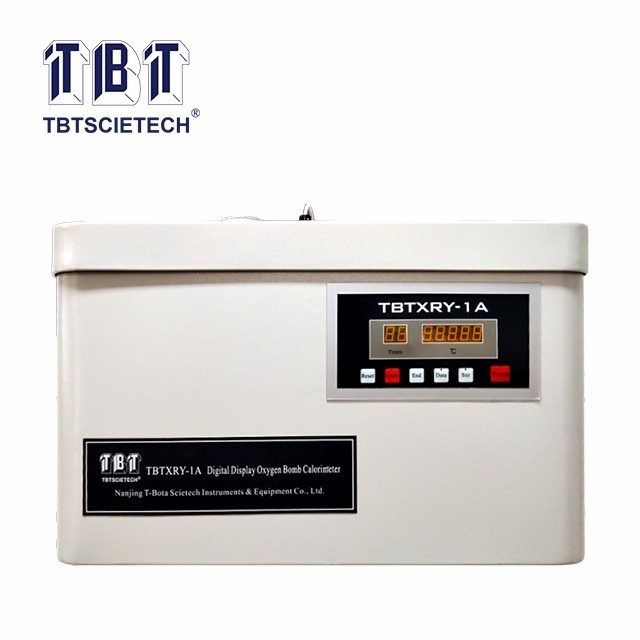

Digital Display Oxygen Bomb Calorimeter TBTXRY-1A
