Pensky-Martens Closed Cup Flash Point Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-261-1 is designed referring to ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester.

It is used to make determination of the closed cup flash point of the petroleum products.

ASTM D93, ISO 2719

1.The heating device is continuously adjustable via LCD screen, the heating rate is accurate;

2.The system automatically controls the heating rate and stirring speed;

2. The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters;

3. Operator only need to press the record key when flash point appearing, the screen will display and save flash point value;

4. The operator can do determination as long as connecting with coal gas or other civil gas;

5. It has function of rapid cooling to increase test efficiency.

Heating rate	Procedure A: (5~6)℃/min Procedure B: (1~1.5)℃/min Procedure C: (2.5~3.5)℃/min
Stirring device	Stirring motor Driving mode: flexible shaft Shaft size: 8mm×40mm
Stirring rate	Procedure A: (90~120) RPM Procedure B: (250±10) RPM Procedure C: (90~120) RPM
Oil cup	Internal diameter: 50.7mm~50.8mm Depth: 55.7mm~56.0mm Marking depth of oil testing capacity: 33.9mm~34.3mm Oil test capacity: about 70ml
Ignition device	Ignition source: coal gas or civil gas Diameter of igniter nozzle: 0.7~0.8mm
Total power consumption	≦650W
Working temperature & humidity	15~35℃, ≤85%RH
Size	340×330×380mm
Power supply	220V, 50Hz

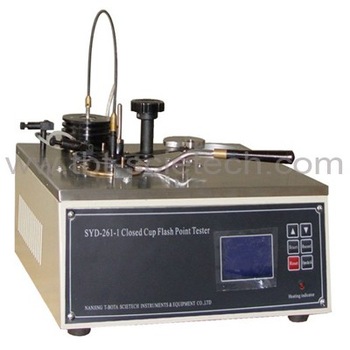

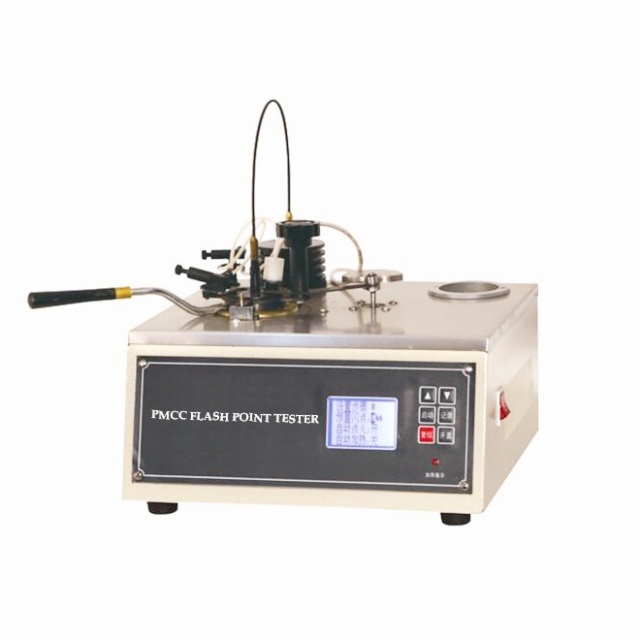

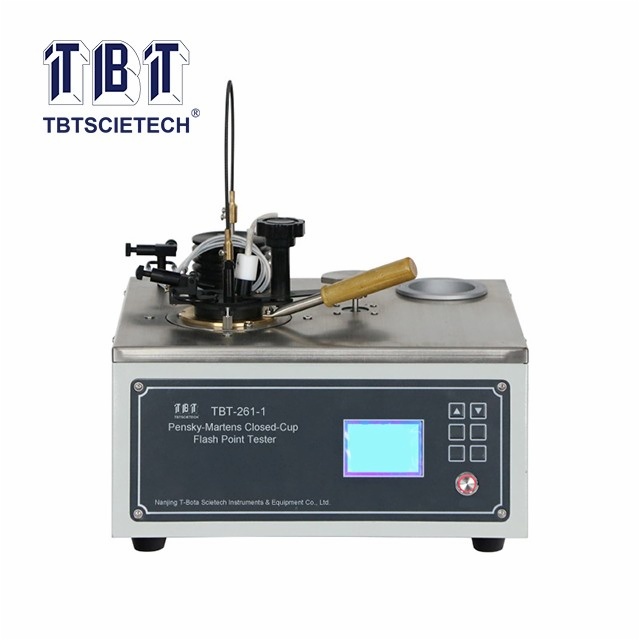

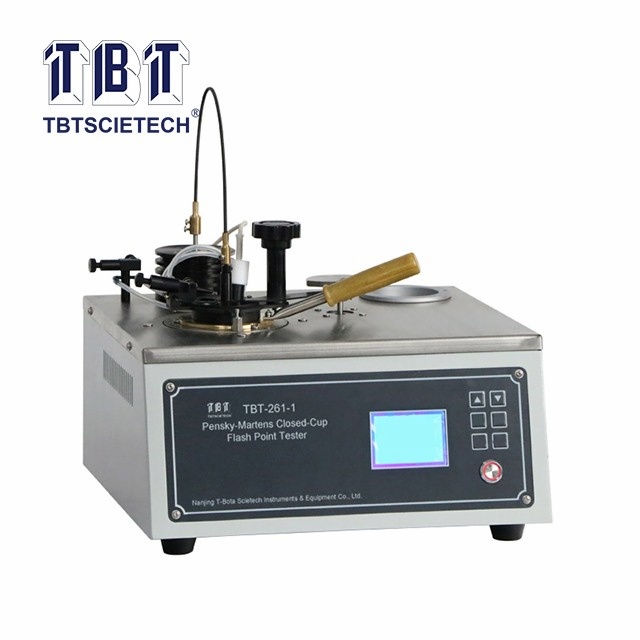

Pensky-Martens Closed Cup Flash Point Tester TBT-261-1
