Intelligent Kinematic Viscometer Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-265H is designed referring to ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids(and Calculation of Dynamic Viscosity).

ASTM D445

1.LCD touch screen controller for setting the test time and viscometer coefficient, it can automatically finish signal sampling, calculation and result print;

2.Internal electric stirring device to make temperature uniform;

3.It can simultaneously test 1 group specimen or 2 groups specimen;

4.±0.1℃ LCD temperature controller and sensor for accurate temperature control and rapid heating;

5.LED lighting strip for easy observe the capillary viscometer;

6.It has wire type timer for manual timing and software automatic timing function;

7.The capillary viscometer clamp is easy to install and remove;

8.Optional accessories including Pinkevitch capillary viscometer, Cannon-Fenske Opaque capillary viscometer and Ubbelohde capillary viscometer for kinematic viscosity testing;

9.Optional cooler is also available to lower the bath temperature for test at 20℃.

Temperature range	Ambient to 100.0℃
Temperature control accuracy	±0.01℃
Bath capacity	20L
Timing range	0.0s~9999.9s
Timing accuracy	60minutes within ±0.05%
Stirring motor	1200RPM
Temperature sensor	RTD, Pt100
Capillary viscometer (Pinkevitch viscometer)	6 pieces in total inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm
Working temperature & humidity	15~35℃, ≤85%RH
Size	530×400×670mm
Weight	42kg
Power supply	220V, 50Hz

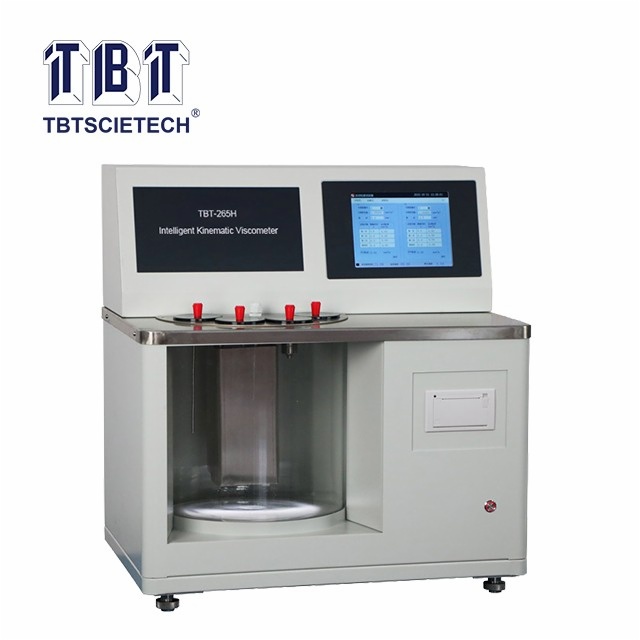

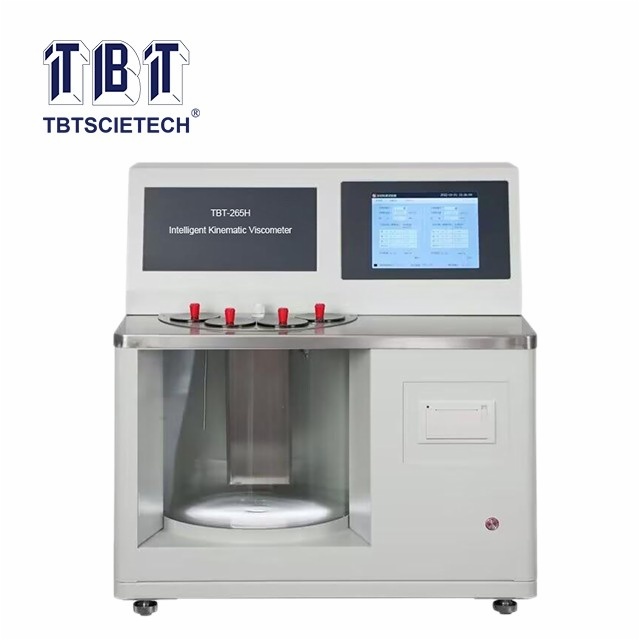

Intelligent Kinematic Viscometer TBT-265H
