Distillation Tester (Low Temperature Single Tube) Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-6536C is designed referring to ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, special boiling point solvent, naphtha, diesel oil, distillate and similar petroleum products.

ASTM D86

1.Special heating furnace which eliminate open flames for test safety;

2.LCD display voltmeter for voltage adjustment, allowing for continuous adjustment of heating power;

3.Openable heating chamber observation window and rotary lifting type heating furnace for safe and convenient operation;

4.Compact design screw compressor refrigeration system can make cooling rapidly, and can reduce the bath temperature from room temperature to 0℃ in approximately 50 minutes;

5.The condensate water bath has temperature control function, it supports to set the range of 0~60℃, ensure uniform temperature and ±0.5℃ temperature control accuracy;

6.A closed-loop condensation system with internal circulation, no need separate water bath which has risk of leakage and icing.

Receiving cylinder	100ml, division value is 1ml
Distillation flask	125ml
Thermometer	-2~300℃ and -2~400℃, division value 1℃
Flask support board	SiC, bore diameter is φ32mm, φ38mm, φ50mm
Temperature control range	0~60℃
Temperature accuracy	±0.5℃
Heating power	2800W
Working temperature & humidity	15~35℃; ≤80%RH
Size	570×440×550mm
Weight	35kg
Power supply	220V, 50Hz

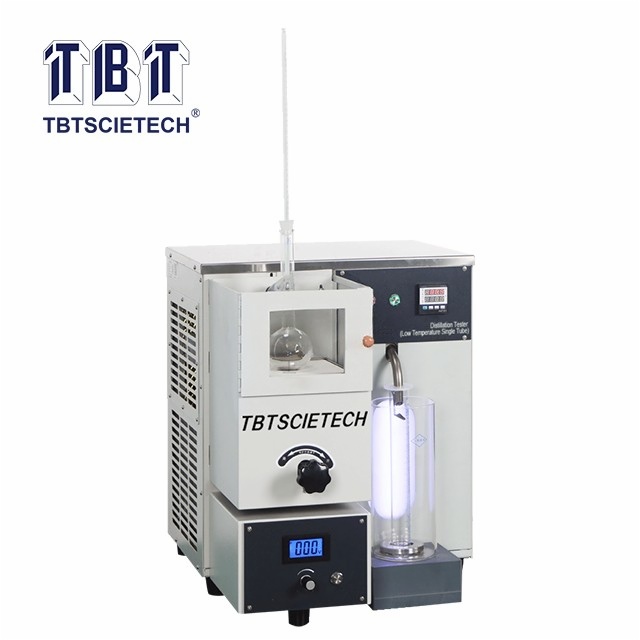

Distillation Tester (Low Temperature Single Tube) TBT-6536C
