Copper Strip Corrosion Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-5096A is designed referring to ASTM D130 Standard Test Method for Detection of Copper Corrosion from Petroleum Products by Copper Strip Tarnish Test.

It is suitable to determine the corrosiveness to copper of aviation gasoline, aviation turbine fuels, automotive gasoline, tractor fuels, washing solvent, kerosene distillate, lubricating oil, and other petroleum products. The device has functions of temperature controlling, automatic timing and alarming.

ASTM D130

1.The device features temperature control, automatic timing, and an end-of-test alarm;

2.Equipped with four test ports, the device accommodates one test bomb or three test tubes per port for simultaneous testing, delivering high throughput;

3.The high-precision LCD temperature controller provides automated operation with ±1°C control accuracy;

4.The water bath, test bombs, and test tube racks adopt stainless steel for corrosion and oxidation resistance;

5.A standard color comparator chart is provided; this device is not applicable to liquefied petroleum gas (LPG) or aviation fuels.

Temperature sensor	Pt100
Temperature range	Room temperature to 100 ℃, can be set at will
Temperature control accuracy	±1 ℃
Time controlling range	1 minute~24 hours, can be set at will
Test port	Four test ports
Sample quantity at one test	4pieces~12pieces
Working temperature & humidity	15~35℃, ≤85%RH
Size	440×330×560mm
Weight	16kg
Power supply	220V, 50Hz

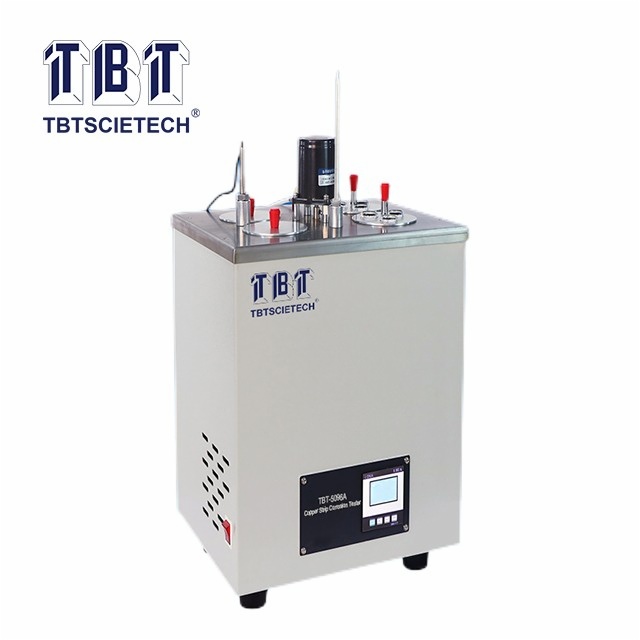

Copper Strip Corrosion Tester TBT-5096A
