Liquid Petroleum Products Hydrocarbon Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-11132 is designed referring to ASTM D1319 Standard Test Method for Hydrocarbon Types in Liquid Petroleum Products by Fluorescent Indicator Adsorption.

It is device for determining the volume fraction of aromatics, olefins and saturated hydrocarbons in petroleum fractions.

Fluorescent indicators are used to display the main hydrocarbons in liquid petroleum products on the silica gel adsorption column, and their volume percentages are calculated as indicators for the quality determination of fuel oils such as engine fuel and aviation fuel.

ASTM D1319

1.This device adopts an integrated vertical structure design, which does not require installation and can be directly placed in a suitable indoor position for use;

2. It is composed of the pneumatic system, vibration part, ruler and scale indication, system lighting, ultraviolet light detection, etc., and the test results are completed in one go from silicone filling, vibration, sample loading to reading;

3. It adopts two imported glass tube adsorption columns with precision inner diameter;

4. This device is equipped with an automatic cleaning device for adsorption columns, which helps clean the adsorption columns automatically.

Pressure regulation range	0~103kPa
Imported adsorption column with precision inner diameter	Column length: 1650mm Separation part inner diameter: Ф5mm Length: 190mm Analysis part: Ф1.6mm~1.65mm Length: 1220mm
UV source	Wavelength: 365nm; power: 40W
Fluorescent lamps for lighting	30W
Size	400×350×1720mm
Weight	40kg
Air compressor dimension	520×170×460mm
Working temperature & humidity	10~40℃, ≤85%RH
Power supply	220V, 50Hz

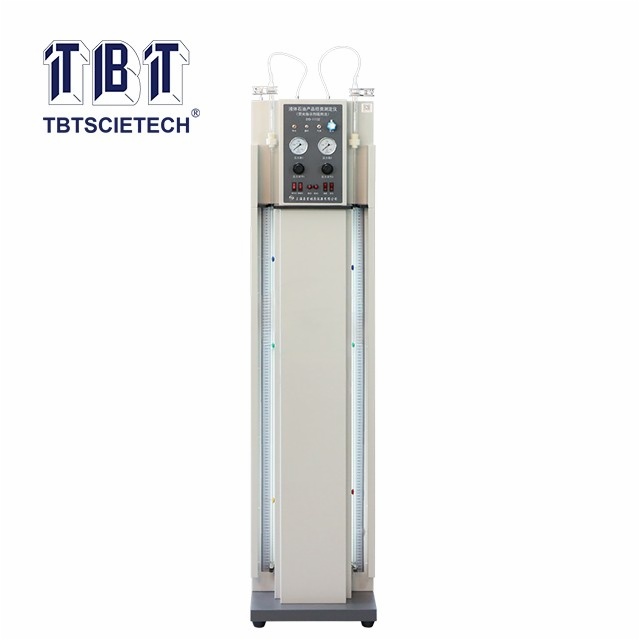

Liquid Petroleum Products Hydrocarbon Tester TBT-11132
