Automatic Kinematic Viscosity Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-265H-1 is designed referring to ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids(and Calculation of Dynamic Viscosity).

ASTM D445

1.It adopts fiber optic sensor which can avoid ambient light influence, make result accurate and reliable;

2.Device has viscometer constant storage function, user can select stored setting and do test quickly;

3.Device has automatic functions for test procedure, sample aspiration, temperature control, flow time detection, result calculation, data saving and clean & dry the capillary viscometer after test;

4.The storage capacity reaches 5,000pcs results, and device supports to viewg and print data at any time;

5.Devie supports to connect the laboratory LIMS system via RS 232 or Ethernet port to achieve data sharing and management.

Temperature range	Ambient to 120.0℃ (can use low temperature water bath for low temperature test)
Temperature control accuracy	0.02℃
Detection method	Fiber optic detection
Timing range	0-3600s
Timing accuracy	0.001s
Capillary viscometer (Pinkevitch viscometer)	5 pieces in total inner diameter for each: 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm
Working temperature & humidity	15~35℃, ≤85%RH
Size	360×450×670mm
Weight	35kg
Power supply	220V, 50Hz

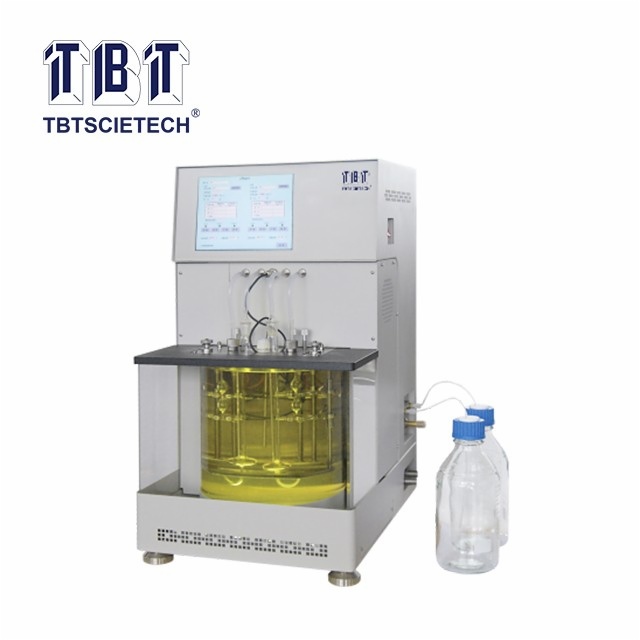

Automatic Kinematic Viscosity Tester TBT-265H-1
