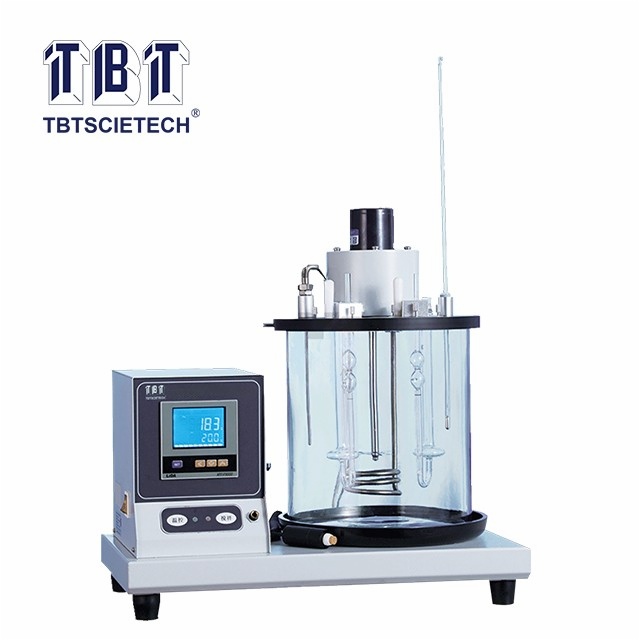

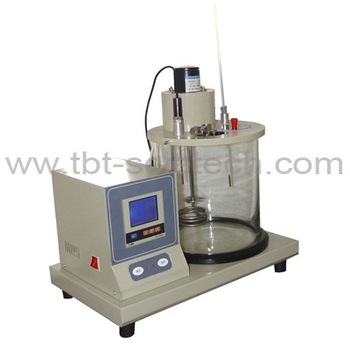

    Kinematic Viscometer TBT-265B

    Kinematic Viscometer
    Item Code:TBT-265B Features:TBT-265B is designed referring to ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids(and Calculation of Dynamic Viscosity).
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBT-265B is designed referring to ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids(and Calculation of Dynamic Viscosity).

    ASTM D445

    1. It has wire type timer for easy timing and control;
    2. It has glass tank and electric stirring device for observation and uniform temperature;
    3. ±0.1℃ LCD temperature controller and sensor for accurate temperature control and rapid heating;
    4. The capillary viscometer clamp is easy to install and remove, and can simultaneously test two capillary viscometers in stable.

    Temperature control range

    Ambient to 100℃

    Temperature control accuracy

    ±0.1℃

    Temperature sensor

    RTD, Pt100

    Timing range

    0s~9999.9s

    Stirring motor

    1200RPM

    Capillary viscometer

    (Pinkevitch viscometer)

    6 pieces in total
    inner diameter for each: 0.6mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm

    Working temperature & humidity

    15~35℃, ≤85%RH

    Size

    500×310×500mm

    Weight

    11.5kg

    Power supply

    220V, 50Hz
