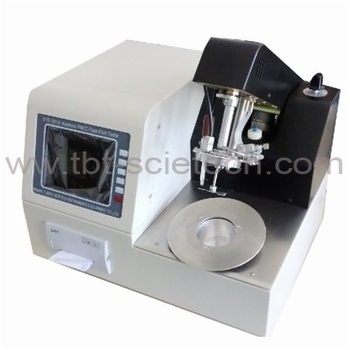

    Automatic Pensky-Martens Closed-Cup Flash Point Tester TBT-261A

    Automatic Pensky-Martens Closed-Cup Flash Point Tester
    Item Code:TBT-261A Features:
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    1. Light-touch colored LCD. English man-machine dialog interface. All parameters including preset flash temperature, sample number, atmospheric pressure and date can be set by prompt menu.

    2. Simulation tracking of temperature rising curve with time. Prompt function. Test date and time can be modified.

    3. 120 groups of data can be saved.

    4. Automatically calculate the corrected flash point when the pressure differs from standard atmospheric pressure.

    5. Differential detection. Automatic correct the system bias.

    6. Automatically open cover, ignite, detect and print result.

    7. Safe and easy to operate.



    Power supply

    AC(220±10%)V,  50Hz.

    Flash point determination

    Range: Ambient to 300℃.                                            Meet requirement of GB/T 261-2008                                         Meet requirement of GB/T 261-2008                                         Resulotion: 0.1℃

    Heating rate

    Procedure A: (5～6)℃/min

    Procedure B:(1～1.5)℃/min

    Automatic control and manually adjustable.

    Stirring rate

    Procedure A: (90～120)RPM,

    Procedure B: (250±10)RPM

    Automatic control and manually adjustable.

    Igniting mode

    Igniting source: gas（or other civilian fuels)

    Electric ignition. Gas flame diameter:3.2mm～4.8mm

    Ambient temperature

    ≤ 40℃

    Relative humidity

    ≤ 80％

    Maximum power consumption

    500W

    Overall dimension

    410㎜×360㎜×310㎜
