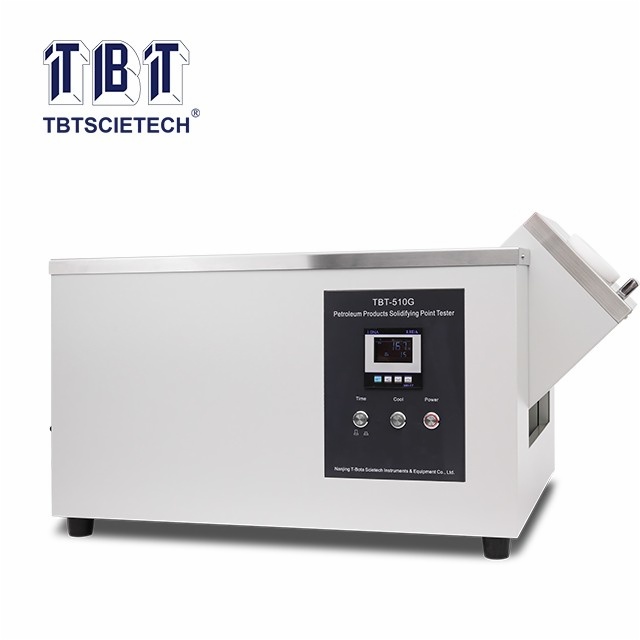

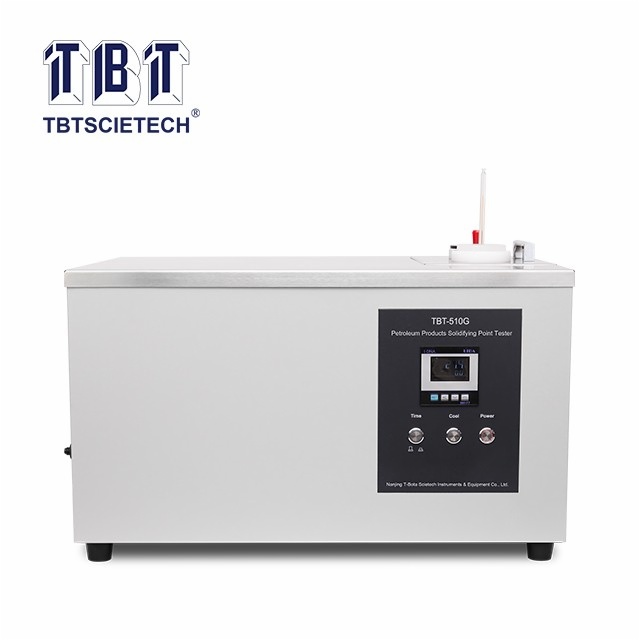

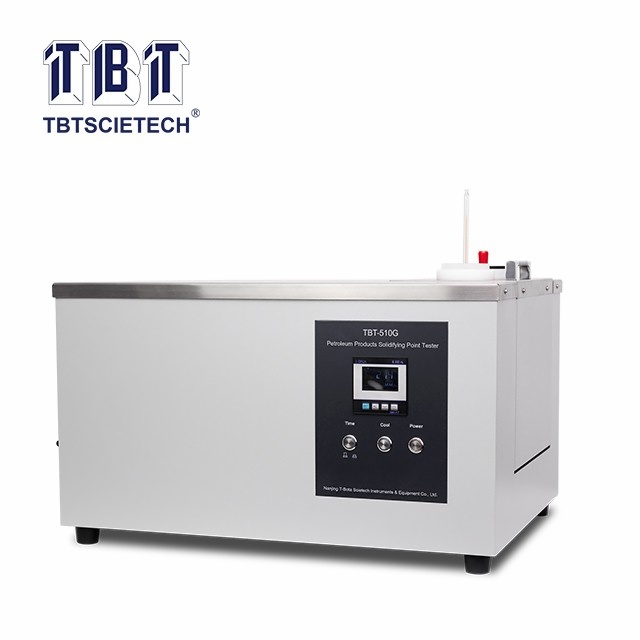

    Low Temperature Tester TBT-510G

    • Low Temperature Tester
    • Low Temperature Tester
    • Low Temperature Tester
    • Low Temperature Tester
    Low Temperature Tester
    Low Temperature Tester
    Low Temperature Tester
    Low Temperature Tester
    Item Code:TBT-510G Features:TBT-510G equips with different modulus can be used for different test, such as solidifying point of petroleum oils, pour point of petroleum oils
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    TBT-510G equips with different modulus can be used for different test, such as solidifying point of petroleum oils, pour point of petroleum oils, cloud point of petroleum oils and sdiesel and domestic heating fuels - determination of cold filter plugging point.

    ASTM D97

    1. The material of workbench is stainless steel. It has two cooling baths in one chamber. The two cooling baths are the same in temperature.
    2. It adopts special technology. It is no need to use cooling liquid in cold chamber. The cooling rate is fast and efficiency is high. The temperature in cooling baths is uniform and it can reach -70℃. The precision is ±0.5℃.
    3. The device adopts bench structure. The design is simple and easy to use. Operator can do solidifying point, pour point, cloud point test as long as buying this equipment.

    Working chamber

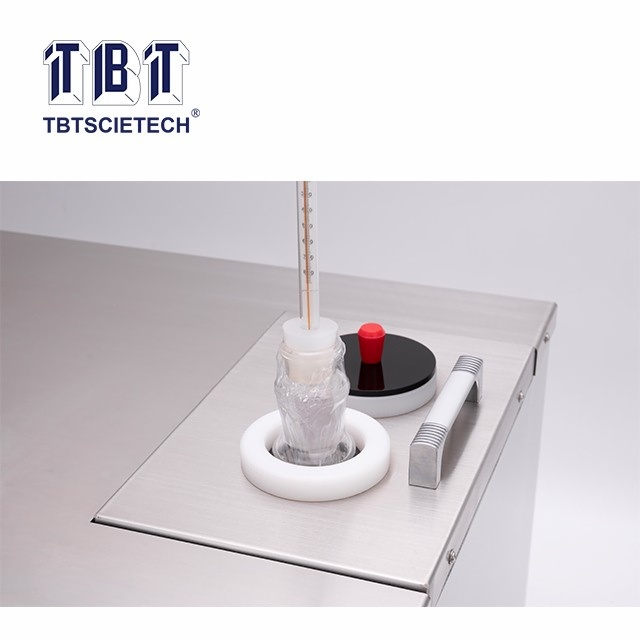

    Two test baths in one chamber.

    The temperatures are the same.

    Temperature range

    -70℃~0℃

    Temperature control accuracy

    ±0.5℃

    Refrigeration

    New type refrigeration compressor

    Working temperature & humidity

    15~35℃, ≤85%RH

    Size

    620×460×340mm

    Power supply

    220V, 50Hz
