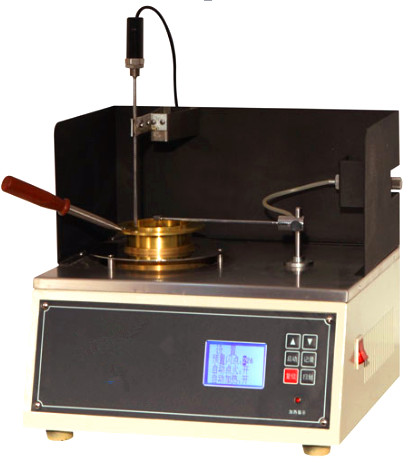

Semi-automatic Cleveland Open Cup Flash Point Tester Manufacturer

1. It adopts technology of single chip microcomputer and LCD screen. English man-machine interface. The heating device is continuously adjustable. Easy to set parameters.

2. The LCD screen has prompt menu, prompt type input for operation interface. It shows set parameters and real-time display sample temperature and other parameters. Press the record key when flash point appearing. The screen will display and save flash point value.

3. It is newly design and small structure. Stainless steel working table make it elegant and beautiful. The operator can do determination as long as connecting with coal gas or other civil gas. Easy to use and results are exact.

4. It is equipped with wind-shelter and flame extinguishing cover which are accord with requirements of test.

Accurate heating rate.The instrument can do test automatically.

5. Operator only need to observe the flash point appearing. The cost performance is high.

Power supply	AC（220±10%）V, 50Hz.
Heating device	Electric furnace heating, no naked fire, explosion prevented.The power is adjustable from 0W to 600W. The max heating temperature can reach 400℃.
Temperature control	Single chip microcomputer.The heating rate can meet requirements of standards GB/T 3536-2008 and ASTM D92.
Temperature display	LCD shows temperature parameters. The display range is 0℃～400℃, display accuracy is 0.1℃.
Flash point detecting device:	It applies the test flame automatically.
Temperature sensor:	RTD, PT100
Igniting device	(1) Ignition source: coal gas (or civil gas) (2) Flame diameter is 3.2mm～4.8mm
Ambient temperature	(-10∼50)℃
Relative humidity	≤85%
Maximum power consumption	650W
Dimension:	340mm×320mm×450mm (Temperature sensor is included)

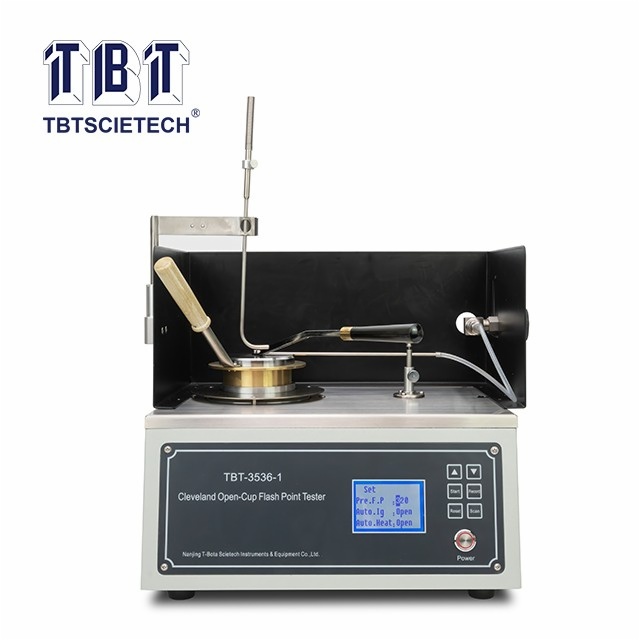

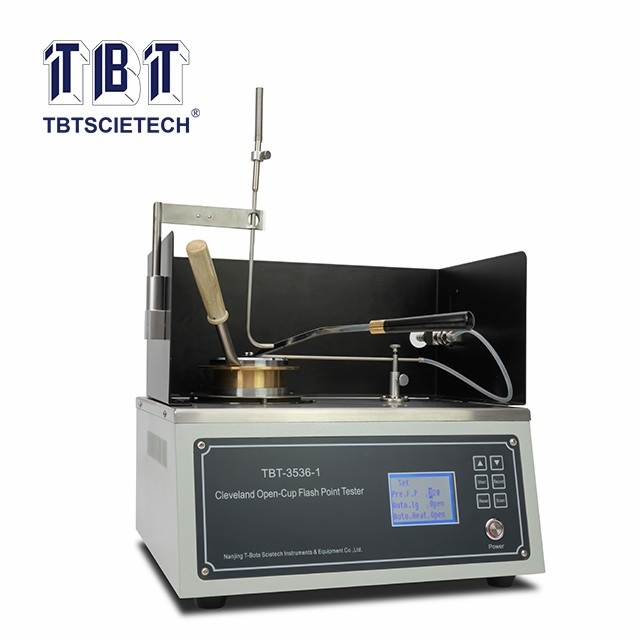

Semi-automatic Cleveland Open Cup Flash Point Tester TBT-3536-1
