Automatic Vapor Pressure Tester (Reid Method) Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-8017A is designed referring to ASTM D323 Standard Test Method for Vapor Pressure of Petroleum Products (Reid Method).

It is used to test make determination for vapor pressure of gasoline, volatile crude oil and other volatile petroleum products.

It cannot be used to determine the vapor pressure of LGP. It is fully-automatic vapor pressure tester by PC control and operation.

ASTM D323

1.It adopts color TFT LCD screen and touch screen;

2. The test process of the instrument is fully automatic. When parameters are set, the device will automatically control the water bath constant temperature, projectile rotation, pressure detection, test timing, and result judgment operations. The operator does not need to intervene in the test. After the test is completed, the device will automatically store the test results;

3. The device can be queried and printed at any time;

4. The device has an online pressure adjustment function. It can effectively calibrate the zero point and range of the pressure sensor to meet the calibration requirements of the standard method;

5. The device has an online temperature adjustment function. It can effectively correct the slight deviation of the sensor reading caused by the lead wire.

Temperature of bath	37.8℃
Temperature control accuracy of bath	±0.1℃
Test bomb	Can do 3 bomb tests at the same time
Pressure range	0~200kPa
Total power consumption	1000W
Working temperature & humidity	15~35℃, ≤85%RH
Size	810×440×490mm
Weight	47kg
Power supply	220V, 50Hz

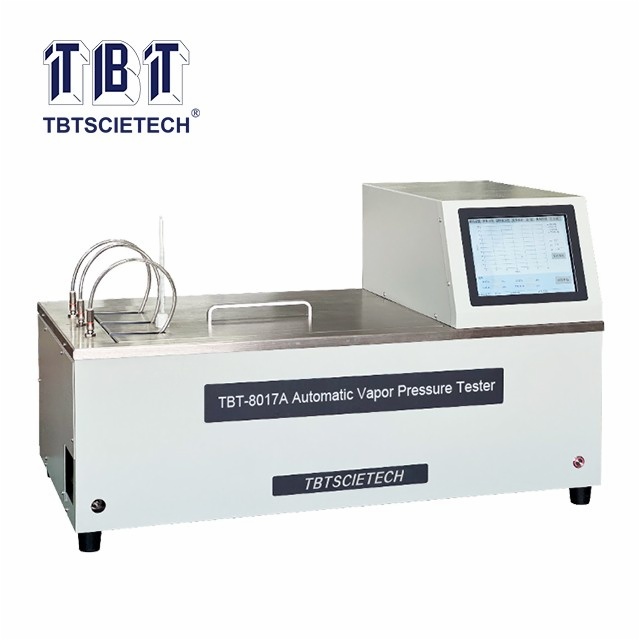

Automatic Vapor Pressure Tester (Reid Method) TBT-8017A
