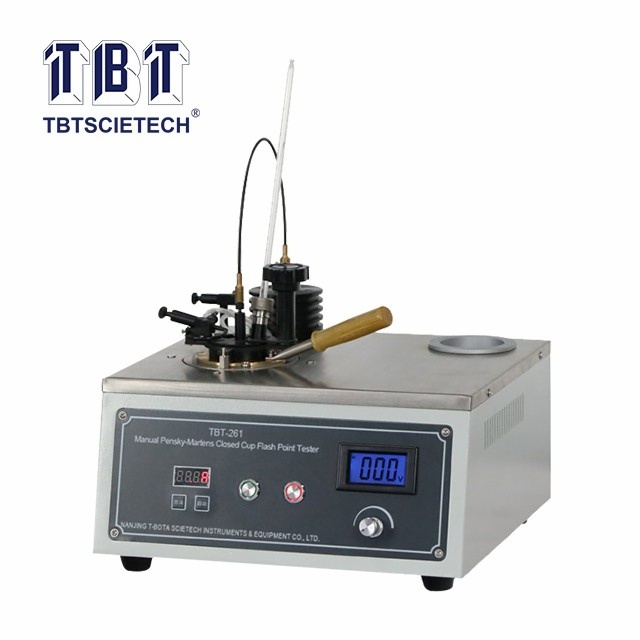

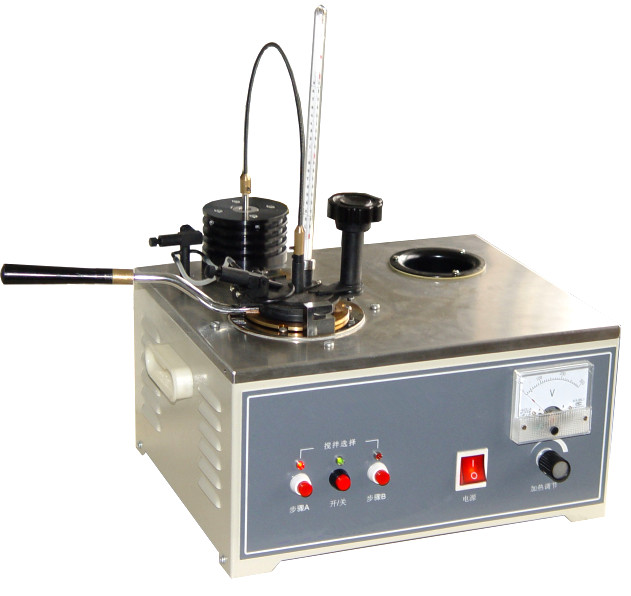

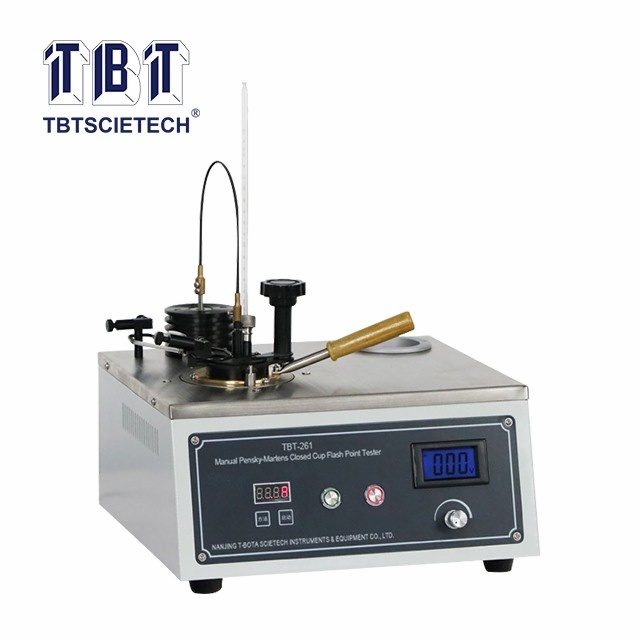

Manual Pensky-Martens Closed Cup Flash Point Tester Manufacturer

TBT-261 is designed referring to ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester.

It is used to make determination of the closed cup flash point of the petroleum products.

ASTM D93, ISO 2719

1.The heating device is continuously adjustable via LCD voltmeter screen;

2.The system automatically controls the stirring speed, the heating rate is controlled manually;

3.The operator can do determination as long as connecting with coal gas or other civil gas;

4.It has function of rapid cooling to increase test efficiency;

5.Equipped with three precision thermometers in different temperature range to meet different specimen.

Heating device	The furnace body is made of silicon carbide The power is adjustable from 0W to 600W
Heating mode	Manual adjustment
Stirring device	Mechanical drive stirring
Stirring rate	Procedure A: 90~120rpm Procedure B: 250±10rpm Procedure C: 90~120rpm
Oil cup	Internal diameter: 50.7mm~50.8mm Depth: 55.7mm~56.0mm Marking depth of oil testing capacity: 33.9mm~34.3mm Oil test capacity: about 70ml
Thermometer	Mercury-in-glass thermometer: (1) Scale -5℃~110℃, division 0.5℃; (2) Scale 20℃~150℃, division 1℃; (3) Scale 90℃~370℃,division 2℃
Ignition device	Ignition source: coal gas or civil gas Diameter of igniter nozzle: 0.7~0.8mm
Total power consumption	≦650W
Working temperature & humidity	15~35℃, ≤85%RH
Size	330×310×250mm
Power supply	220V, 50Hz
