Oxygen Bomb Calorimeter Manufacturer

Description
Referring Standard
Features
Technical Specification

1. The instrument adopts a high precision temperature sensor and a high performance A/D converter, and uses a SCM to form the temperature collection and transportation system.

2. The instrument configuration laptop, composed of a high degree of automation, easy to use, convenient and intelligent data compilation instrument.

3. The instrument is fully automated in the testing process, after the sample in place, correct input various parameters automatically without manual intervention to complete each test process; you can print measurement data directly on the A4-format printer configuration after the end of the trial.

Heat capacity:	（14000 ～ 15000）J/K;
Temperature resolution:	0.001 K;
Thermal error:	≤60J/g;
Temperature measurement range:	10 ℃～35 ℃;
Repeatability error:	≤0.2% (Grade C);
Pressure endured by Oxygen bomb:	20 MPa;
Ambient temperature:	15 ℃～28 ℃ (room temperature), The temperature fluctuation during each test should be not more than 1 ℃;
Ambient humidity: ;	less than 85%
Power supply:	AC（220±5%）V，50Hz;
Dimensions:	600 mm × 460 mm × 430 mm (length × width × height, PC is not included).

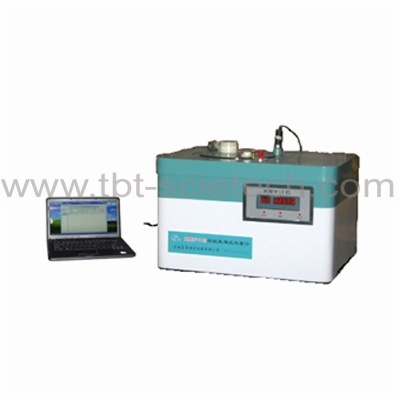

Oxygen Bomb Calorimeter XRY-1C
