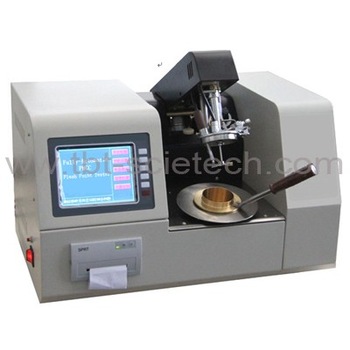

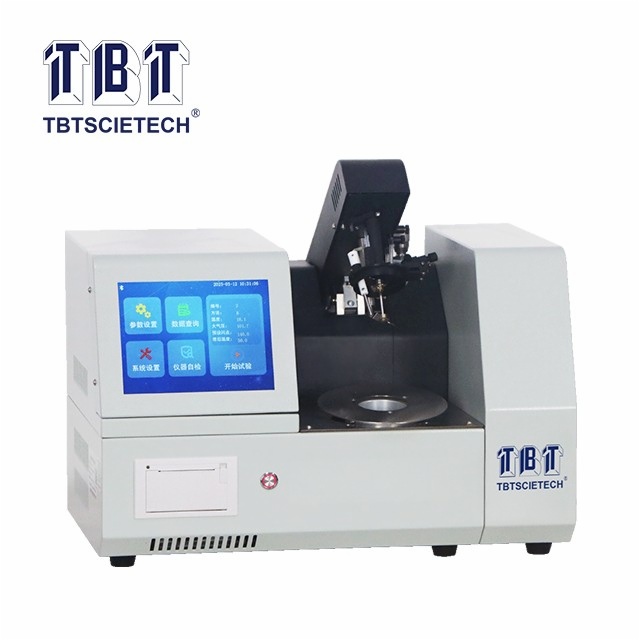

Fully-automatic Pensky-Martens Closed Cup Flash Point Tester Manufacturer

TBT-261D is designed referring to ASTM D93 Standard Test Methods for Flash Point by Pensky-Martens Closed Cup Tester.

It is used to make determination of the closed cup flash point of the petroleum products.

ASTM D93, ISO 2719

1.It adopts an 8-inch IPS high-definition capacitive screen, 32-bit ARM processor and high-precision AD chip;

2.Real time display and record the test data and parameters and generate curve;

3.Equipped with a Bluetooth interface to connect with computer for data collection and analysis;

4.It supports functions of remote prediction, abnormal early warning, comprehensive evaluation and maintenance of device operation status;

5.Automatic measurement of atmospheric pressure and correct the flash point value automatically;

6.Temperature rise, cover opening, ignition, detection, printing data and the test arm rises and falls automatically;

7.Electronic ignition, gas flame and automatic air cooling after the test;

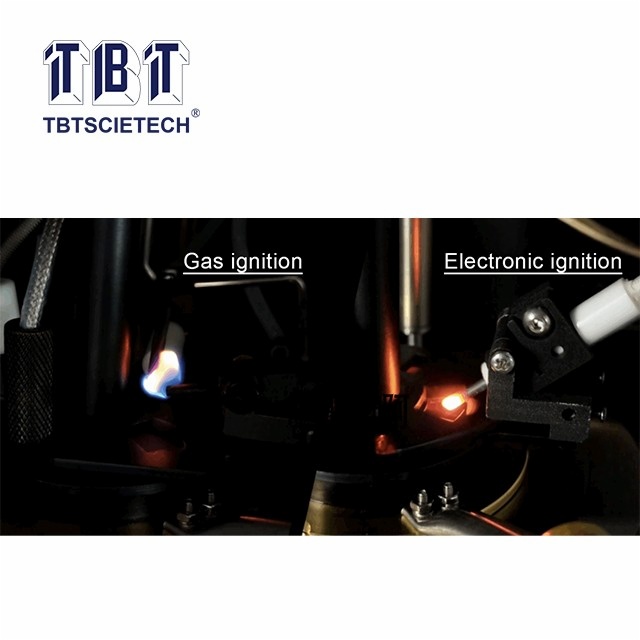

8.User can select electronic ignition or gas ignition according to demand.

Flash point determination	Range: Ambient to 230℃ Accuracy: 0.1℃
Heating rate	Procedure A: (5~6)℃/min Procedure B: (1~1.5)℃/min Procedure C: (2.5~3.5)℃/min
Stirring rate	Procedure A: (90~120) RPM Procedure B: (250±10) RPM Procedure C: (90~120) RPM Automatic control and manual control
Data transmission mode	Bluetooth
Ignition device	Electric ignition or coal gas/civil gas Diameter of igniter: 0.7~0.8mm
Total power consumption	≦600W
Working temperature & humidity	15~35℃, ≤85%RH
Size	510×320×330mm
Power supply	220V, 50Hz
