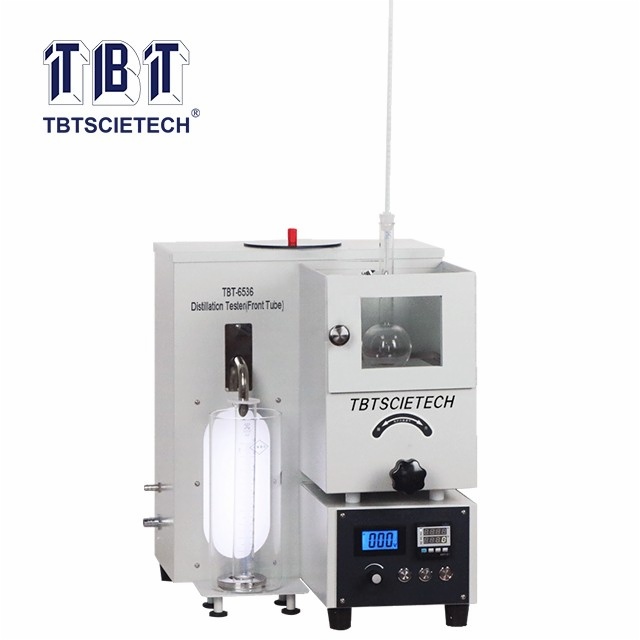

    Distillation Tester(Front Tube) TBT-6536

    Distillation Tester(Front Tube)
    Item Code:TBT-6536 Features:TBT-6536 is made referring to ASTM D86 Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, and solvent having special boiling point, naphtha, diesel oil, distillate fuels and similar petroleum products.
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    TBT-6536 is made referring to ASTM D86 Standard Test Method for Distillation of Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, and solvent having special boiling point, naphtha, diesel oil, distillate fuels and similar petroleum products.

    ASTM D86

    1.Special heating furnace which eliminate open flames for test safety;
    2.LCD display voltmeter for voltage adjustment, allowing for continuous adjustment of heating power;
    3.The raising and lowering of the distillation flask is freely adjustable by a lifting and regulating device;
    4.The condensate water bath has temperature control function, it supports to set the range of room temperature+10~60℃, ensure uniform temperature and ±0.5℃ temperature control accuracy;
    5.304 stainless steel condensation tank provides corrosion-resistant and long service life.

    Receiving cylinder

    100ml, scale division 1ml

    Distillation flask

    125ml

    Temperature control range

    Room temperature+10~60℃

    Temperature accuracy

    ±0.5℃

    Flask support board

    SiC, diameter for each hole is φ32mm,φ38mm and φ50mm

    Temperature & humidity

    15~35℃, ≤85%RH

    Size

    460×400×550mm

    Weight

    18.5kg

    Power supply

    220V, 50Hz
