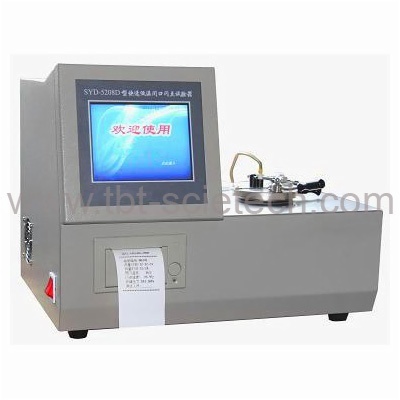

    Rapid Low Temperature Closed Cup Flash Point Tester TBT-5208D

    Rapid Low Temperature Closed Cup Flash Point Tester
    Item Code:TBT-5208D Features:Flash Point Tester,Closed Cup Flash Point Tester ,Rapid Low Temperature Flash Point Tester
    • Description
    • Referring Standard
    • Features
    • Technical Specification

    1. Designed as per GB/T 5208-2008 Determination of flash point - Rapid equilibrium closed cup method. It can realize purpose of testing closed cup flash point rapidly and at low temperature.

    2. The instrument adopts semiconductor refrigeration device and external water cooling device. The size is small and cooling rate is rapid. Easy to operate.

    3. Test sample needed is less.2ml for each time（4ml for solid sample and semi-solid sample）

    4. The determination procedure is automatically completed except ignition. Test results can be printed automatically.





    Power supply

    AC(220±10%)V, 50Hz

    Flash point measuring range

    0℃～100℃

    Precision of determination

    Absolute difference value between two determinations is lower than 2℃(same operator)

    Absolute difference value between two determinations is lower than 3℃(different operator)

    Temperature control precision

    ±0.5℃

    Igniting device

    Electric igniting gun

    Cooling mode

    Semiconductor(with cold water cycle at external connection)

    Maximum power consumption

    300W

    Ambient temperature

    5℃～30℃

    Relative humidity

    30%～80%

    Dimension

    370mm×280mm×280mm



    Other Products

    Product Name:
    Kinematic Viscometer
    Model:
    TBT-265B
    Description:
    TBT-265B is designed referring to ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids(and Calculation of Dynamic Viscosity).
    Product Name:
    Crude Oil Water Content Tester
    Model:
    TBT-8929A
    Description:
    TBT-8929A is designed and made as per ASTM D4006 Standard Test Method for Water in Crude Oil by Distillation. It is used to determine the water in crude oils.
    Product Name:
    Density, Kinematic Viscosity, Viscosity Index Tester
    Model:
    TBT-1884B
    Description:
    TBT-1884B is designed referring to ASTM D1298 Standard Test Method for Density, Relative Density (Specific Gravity), or API Gravity of Crude Petroleum and Liquid Petroleum Products by Hydrometer Method, ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids (and Calculation of Dynamic Viscosity) and ASTM D2270 Standard Practice for Calculating Viscosity Index from Kinematic Viscosity at 40℃ and 100℃.
    Product Name:
    Petroleum Products Color Tester
    Model:
    TBT-0168
    Description:
    TBT-0168 is suitable to determine color of various lubricating oils and other petroleum products.
    Product Name:
    Automatic Engine Oils Apparent Viscosity Tester
    Model:
    TBT-6538
    Description:
    TBT-6538 is designed referring to ASTM D5293 Standard Test Method for Apparent Viscosity of Engine Oils and Base Stocks Between -10℃ and -35℃ Using Cold-Cranking Simulator.
    Product Name:
    Automatic Kinematic Viscosity Tester
    Model:
    TBT-265H-1
    Description:
    TBT-265H-1 is designed referring to ASTM D445 Standard Test Method for Kinematic Viscosity of Transparent and Opaque Liquids(and Calculation of Dynamic Viscosity).
    Product Name:
    Distillation Tester (Low Temperature Double Tubes)
    Model:
    TBT-6536B
    Description:
    TBT-6536B is designed referring to ASTM D86 Standard Test Method of Distillation for Petroleum Products at Atmospheric Pressure. It is suitable to determine the distillation characteristics of gasoline, aviation gasoline, jet fuels, solvent having special boiling point, naphtha, diesel oil, distillate fuels, and other petroleum products.
