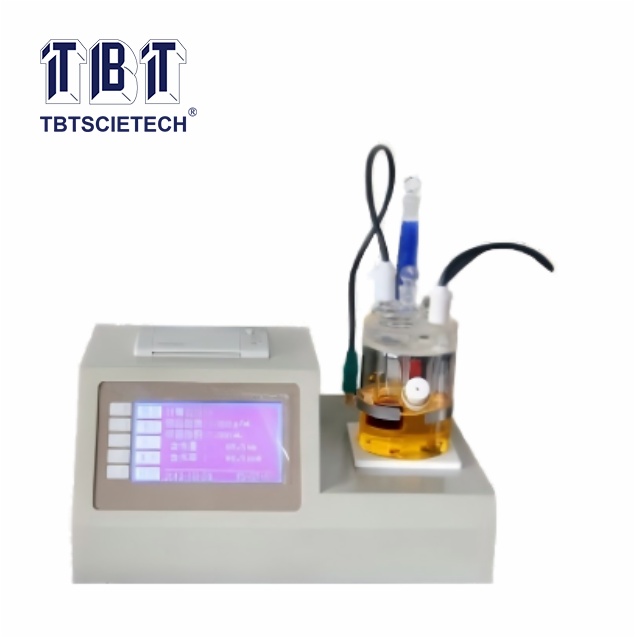

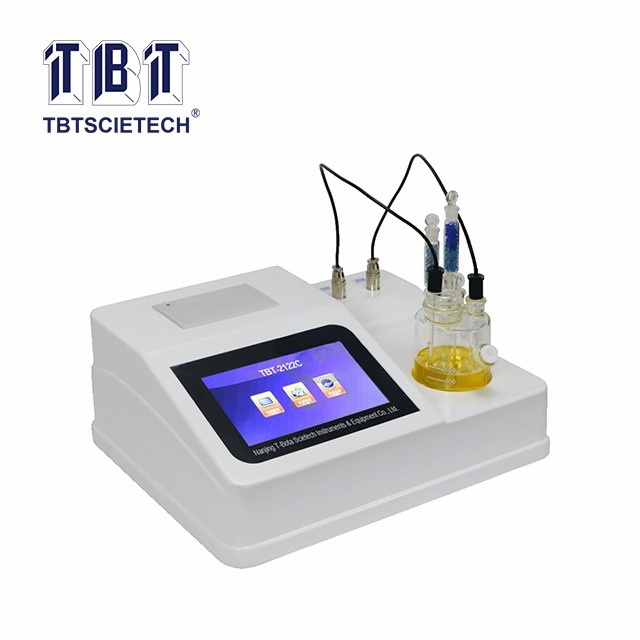

    Automatic Karl Fischer Titrator TBT-2122C

    Automatic Karl Fischer Titrator
    Item Code:TBT-2122C Features:
    Neutral packing
    OEM accepted
    • Description
    • Referring Standard
    • Features
    • Technical Specification
    The instrument is designed and made as per the National Standard GB/T11143 “Test Methods for Water Content of Liquid Petroleum Products (Karl Fischer Methods)”. It is suitable to determine water content in the liquid petroleum products by titration using Karl Fischer reagent. Adopt a microprocessor for control, so it has characteristics of rapid determination speed, high precision, LCD display, and automatic print. It also has function of self-diagnostics, menu selection. It is a multifunctional, convenient, and automatic analysis instrument.


    Titration mode:
    Coulometric titration controlled by a microprocessor
    Measurement range:
    1μg～100mg (Representative value: 10μg～10mg)
    Electrolysis control:
    Automatic electrolysis current control (Max is 400 mA)
    Titration speed:
    2 mg/min (Maximum)
    Test accuracy:
    0μg～1mg±3μg
    It will be 0.3% for more than 1 mg (not including sample filling error)
    End point:
    information display, buzzer alarm, and indication light is on
    Date:
    Year Month Day Hour Minute Second
    Printer:
    16 characters width pin-printer. Paper width is 44 mm
    Power supply:
    AC 220V±10%, 50Hz±5%
    Ambient temperature:
    5～40℃
    Relative humidity:
    ≤90%
    Size:
    290×380×120 (mm)
    Weight:
    9 Kg
    Power:
    60 W
