Ash Content Tester Manufacturer

Description
Referring Standard
Features
Technical Specification

TBT-508 is designed referring to ASTM D482 Standard Test Method for Ash from Petroleum Products.

It is used to determine ash content in the petroleum products without ash-forming additives(excluding additives containing certain phosphorus compounds), lubricating oils without lead and unused engine crankcase oils.

The method summary of ash content test: Take ashless filter paper as ignition core. Ignite the sample in the crucible to make it burning to ash and carbon residue. Heat the carbon residue at 775℃ in the high temperature furnace to make it convert to ash. Then cool down and weigh the mass.

ASTM D482

1.All-in-one structure furnace with special fire-resistant material and heating components. The heating time is short and it has a long lifetime;

2.Adjustable LED temperature controller for small overshoot, it makes temperature control be stable.

Box-type heating furnace
Temperature control	775±25℃
Temperature rising time for empty furnace	≤50 min
Furnace temperature uniformity	≤15℃
Chamber size	200x120x80mm
Size	490x450x450mm
Weight	35kg
Power supply	220V, 50Hz

Temperature control stand
Max. temperature control	1200℃
Controller	Digital display
Thermocouple	WRN-010
Size	320x315x245mm
Weight	5kg
Power supply	220V, 50Hz

Electric heating plate
Rated temperature	400℃
Heating power	1~6grades, continuously adjustable
Diameter of heating plate	85mm
Size	280x250x90mm
Power supply	220V, 50Hz

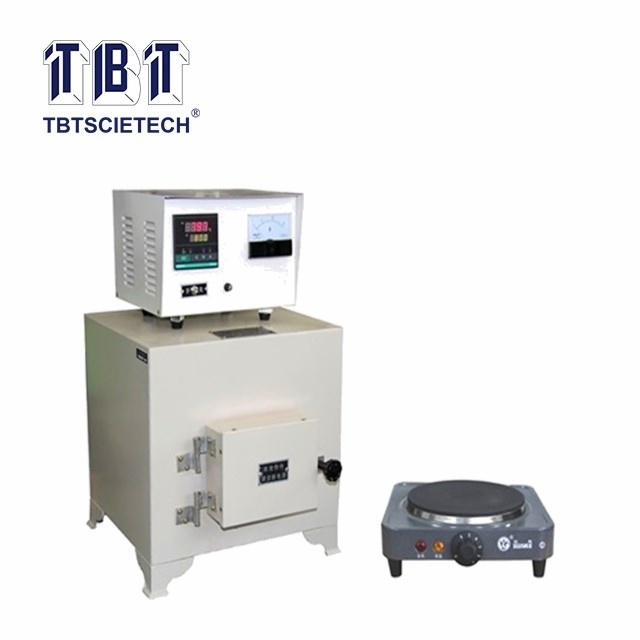

Ash Content Tester TBT-508
